Microchip Technology AVR-IoT Cellular Mini Development Board (EV70N78A)

Microchip Technology AVR-IoT Cellular Mini Development Board (EV70N78A) is a complete platform that can be used to evaluate and develop IoT solutions. It features the AVR128DB48 AVR® microcontroller, ATECC608B secure element, and the Sequans Monarch 2 GM02S cellular module. Sensors and actuators can be added using the onboard Adafruit Feather compatible edge connector or Qwiic® I²C connector. The Amazon Web Services and Arduino-compatible Development Board also includes a Truphone SIM card.

Features

AVR128DB48 AVR® microcontroller
ATECC608B CryptoAuthentication™ device
25CSM04 serial EEPROM 4Mb
GM02S cellular module
824-2170MHz cellular flexible antenna
Prepaid SIM card from Truphone 150MB data included
Nano SIM card holder
eSIM footprint
5 user LEDs
2 mechanical buttons
VMK3-9002 32.768kHz crystal
VEML3328 color sensor
MCP9808 temperature sensor

Adafruit feather-compatible edge connector
Qwiic® I²C connector
Onboard debugger
- Board identification in Microchip Studio and Microchip MPLAB® X
- One green power and status LED
- Virtual serial port (USB CDC)
- Two logic analyzer channels (debug GPIO)
Compatible with the cellular Arduino library
USB, battery, and external-input power options
MCP73830 Li-ion/LiPo battery charger, with charge status, LED
Two fixed power domains: 1.8V and 3.3V

Videos

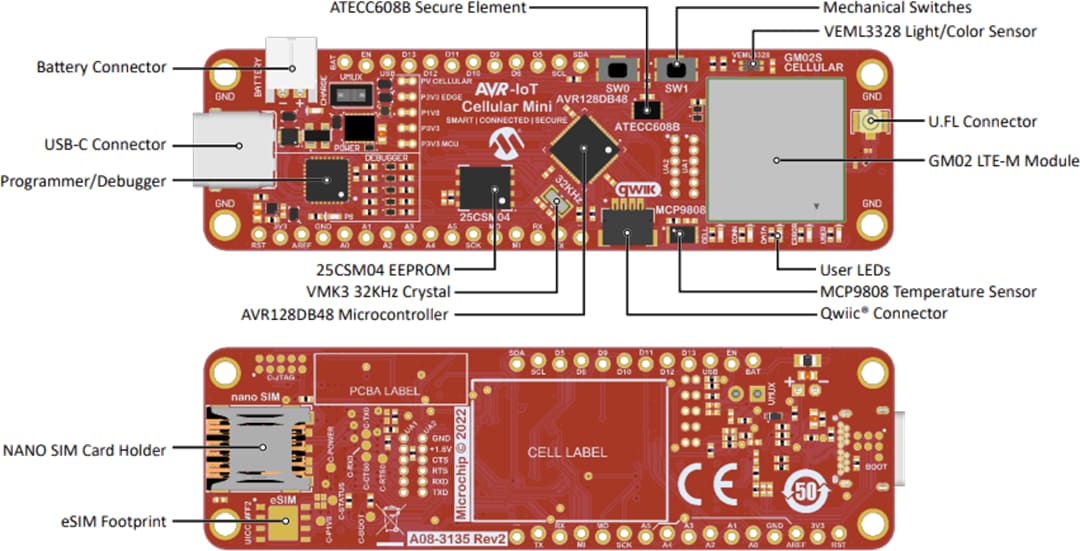

Board Layout

Microchip Technology AVR-IoT Cellular Mini Development Board (EV70N78A)

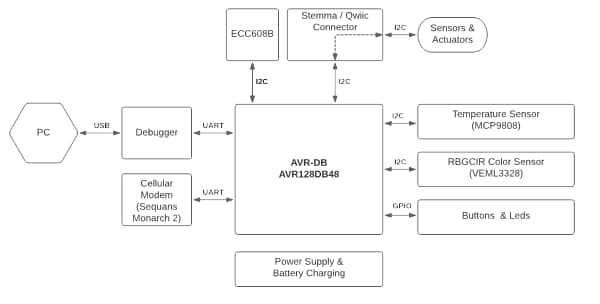

Block Diagram
