Micro Crystal RV-3032-C7 Development Board

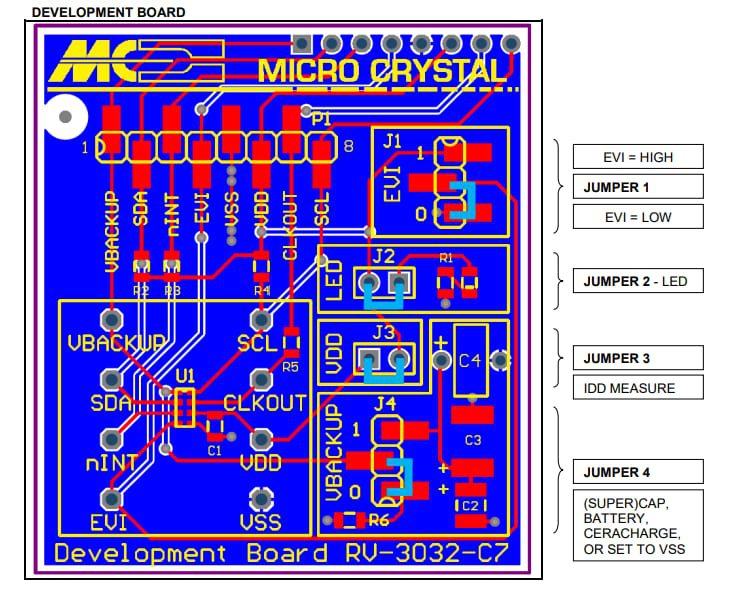

Micro Crystal RV-3032-C7 Development Board is a demonstration board for the RV-3032-C7 Real-Time Clock Module with I²C Bus. Micro Crystal RV-3032-C7 is soldered onto the development board. Every pin is accessible at test pins 1 to 8 and at the test vias situated around the device. The eight top-right vias (one-one copy of the test pins 1 through 8) can be used for an angled connector. RV-3032-C7 Real-Time Clock Module with I²C Bus incorporates an integrated CMOS circuit together with a crystal (XTAL).

Kit Contents

RV-3032-C7 RTC is soldered onto the development board
C1 10nF decoupling capacitor between V_ss and V_dd
C2 100µF capacitor for backup power
C3, C4 option to place alternative (super)-capacitors or battery/Ceracharge for backup power
R1 330Ω current limiting resistor for LED
LED1 green – supply, current consumption of the LED has to be considered, J2 to switch off

R2 10kΩ pull-up resistor SDA to Vdd
R3 10kΩ pull-up resistor INT to Vdd
R4 10kΩ pull-up resistor SCL to Vdd
R5 0Ω resistor to be unsoldered in case of high-frequency signal issue
R6 10kΩ pull-down resistor to define Vbackup input in case it is not used
