Micro Commercial Components (MCC) SMGJ80CA Transient Voltage Suppressor

Micro Commercial Components (MCC) SMGJ80CA Transient Voltage Suppressor (TVS) is a diode that features bi-directional high surge current capability. This TVS provides level 1 moisture sensitivity, low clamping voltage under surge, and is ideal for automated placement. The SMGJ80CA TVS operates from -55°C to 125°C junction temperature range, 90V to 110V breakdown voltage range (V_BR), and offers a 2500A peak pulse current (8/20μs).

Features

High surge current capability
Bi-directional TVS
Glass passivated junction
80V operating voltage
130V clamping voltage
18.3mm x 14mm x 7.5mm mechanical dimension

90V to 110V breakdown voltage range (V_BR)
-55°C to 125°C operating temperature range
Low clamping voltage under surge
Level 1 moisture sensitivity
2500A peak pulse current (8/20μs)

Micro Commercial Components (MCC) SMGJ80CA Transient Voltage Suppressor

Features

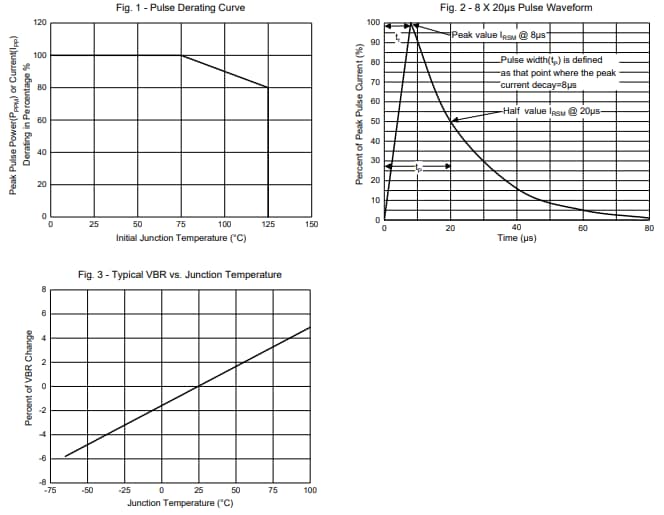

Curve Characteristics
