Micro Commercial Components (MCC) BZX84 Zener Diodes

Micro Commercial Components (MCC) BZX84 Zener Diodes feature a 2.4V to 39V zener voltage range, 0.9V maximum forward voltage, and 625°C/W thermal resistance (junction to ambient). These diodes are AEC-Q101 qualified and halogen-free. The BZX84 diodes operate from -55°C to 150°C temperature range and offer 200mW power dissipation. These diodes comply with Moisture Sensitivity Level 1 (MSL 1) and are ideal for automated assembly processes.

Features

Planar die construction
2.4V to 39V zener voltage range
0.9V maximum forward voltage
AEC-Q101 qualified
625°C/W thermal resistance (junction to ambient)
200mW power dissipation

-55°C to 150°C operating temperature range
Halogen-free
Moisture Sensitivity Level 1
Epoxy meets UL 94V-0 flammability rating
Ideal for Automated Assembly Processes

Micro Commercial Components (MCC) BZX84 Zener Diodes

Features

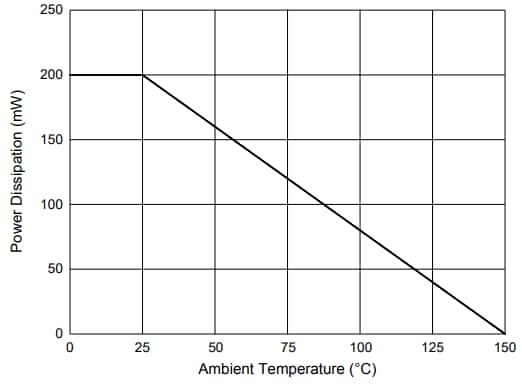

Power Derating Curve

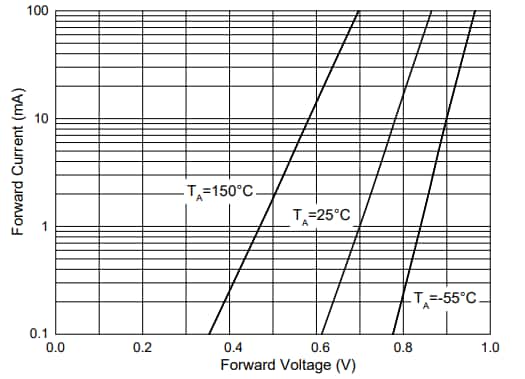

Typical Forward Characteristics
