Merit Sensor CMS 1610 Piezoresistive Pressure Sensors

Merit Sensor CMS 1610 Piezoresistive Pressure Sensors use an ASIC to calibrate and compensate for thermal and non-linearity effects. Merit Sensor CMS 1610 features excellent burst pressure, a wide voltage range, and a low-power mode, making it ideal for designing low-power devices. With absolute and gage options, the sensors can be used across a wide pressure range.

Features

Compact size 6.8mm x 6.8mm
Wide pressure range options from 2 to 150PSI
Absolute or gage pressure type
SMD solder pads, 1.27mm standard spacing electrical connection
Digital I²C and SPI output

2 to 100 times maximum operating pressure (depending on pressure range) burst pressure
Low power mode
2.7V to 5.5V wide supply voltage
0°C to 50°C or -15°C to 85°C compensated temperature range
Autozero and output signal averaging

Applications

Pneumatic systems
Equipment for diagnosis and analysis

Appliances and electronics
Dry, non-corrosive gas pressure applications

ELECTRICAL Diagram

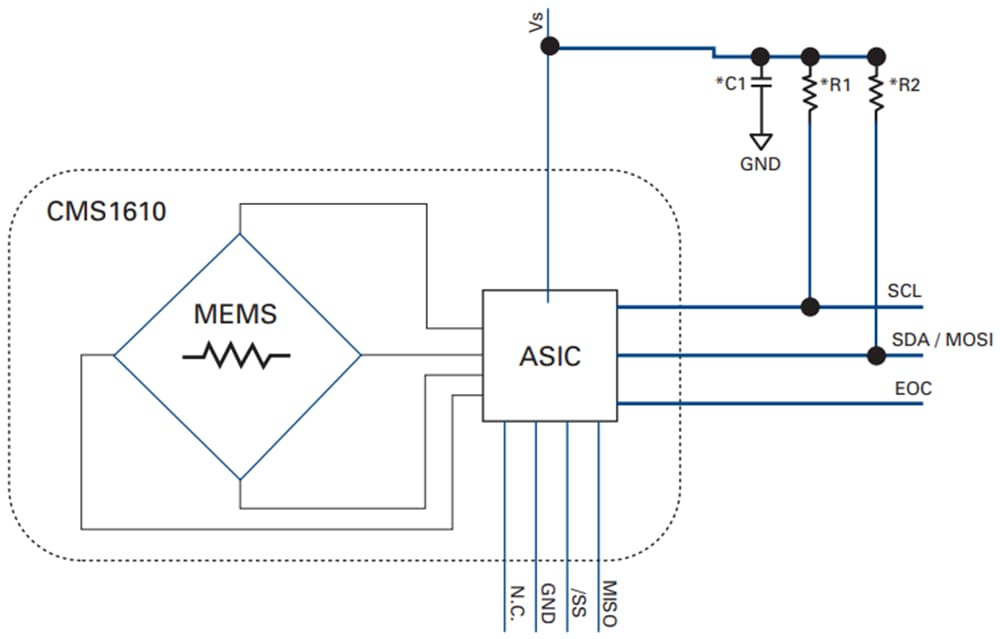

Application Circuit Diagram - Merit Sensor CMS 1610 Piezoresistive Pressure Sensors
