Melexis MLX90517 High-Speed Inductive Resolver IC

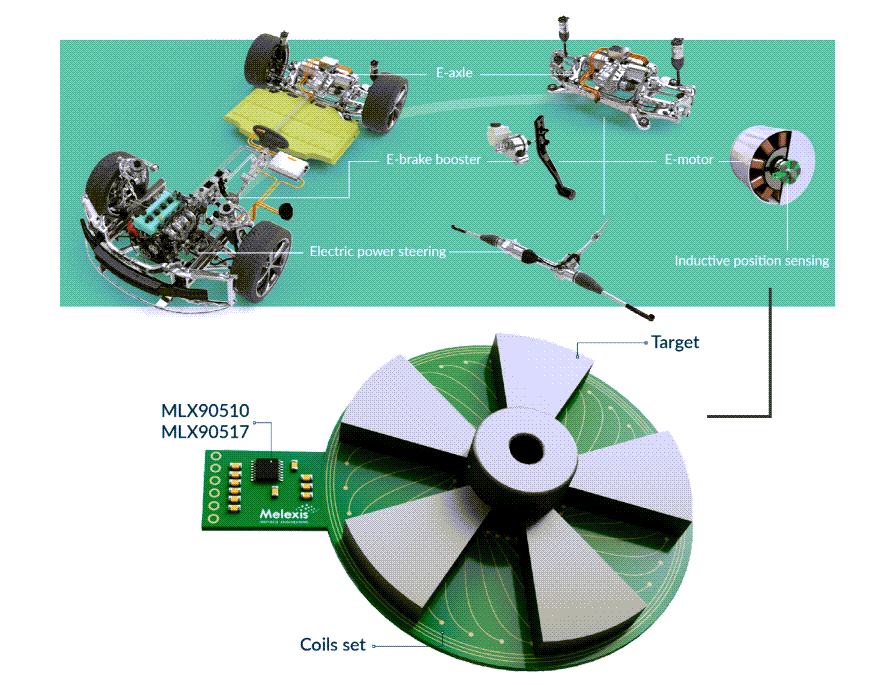

Melexis MLX90517 High-Speed Inductive Resolver IC is developed for e-machines (BLDC, PMSM, PMSR) used as traction or auxiliary motors (steering, braking). The MLX90517 accurate inductive high-speed resolver interface offers a connection for an inductive transducer and supplies raw sine and cosine signals, which the ECU must compensate for before angle calculation. The Melexis MLX90517 (off-chip calculation) complements the MLX90510 (on-chip calculation).

Features

High accuracy of ±0.36° maximum
Immune to magnetic stray fields (ISO 11452-8)
ISO26262 ASIL C SEooC (Safety Element out of Context)
High-speed operational up to 660000 e-rpm
Differential sine and cosine analog outputs
5V operating supply voltage

Overvoltage and reverse-polarity protection of ±24V maximum
Ambient operating temperature ranging from -40°C to +160°C

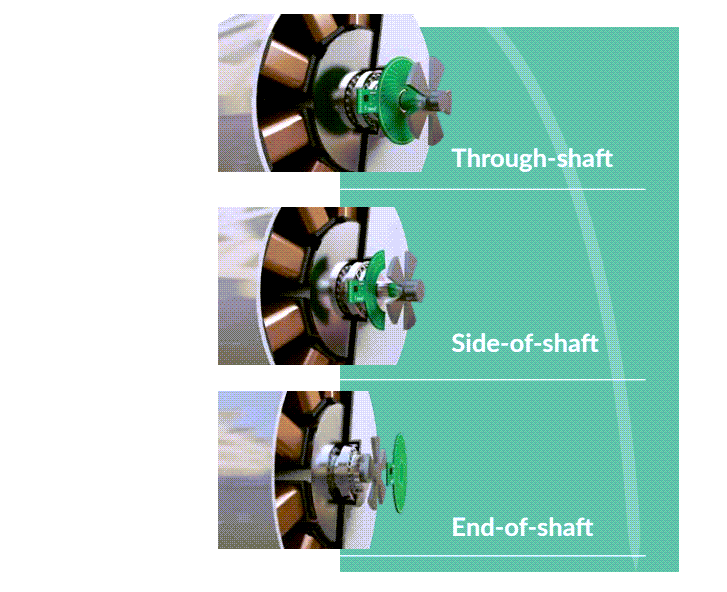

Through-Shaft, End-of-Shaft, and Side-of-Shaft operation
TSSOP-16 package RoHS compliant

Applications

High-speed absolute rotary position sensor
Motor position sensing (BLDC, PMSM, PMSR)
Traction motor

E-brake booster
Electric Power Steering (EPS)
