Melexis MLX90513 Automotive Inductive Position Sensor

Melexis MLX90513 Automotive Inductive Position Sensor is engineered for absolute rotary and linear motion/position sensing in automotive and industrial applications. The MLX90513 controls an inductive sensor (coils) and processes the captured analog signals with on-chip calculation. The sensor supports SENT/SPC (Short PWM Code), PWM, and analog output modes.

The Melexis MLX90513 Automotive Inductive Position Sensor is ideal for demanding applications such as pedal or steering wheel positions.

Features

High accuracy maximum of ±0.1% FS

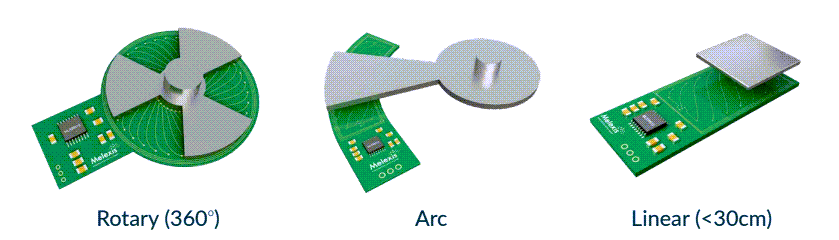

Supports rotary (360°) and linear (up to 30cm)
Immune to magnetic stray fields (ISO 11452-8)
Single pin output configurable for SENT/SPC, PWM, or analog ratiometric
(fast) SENT according to SAE J2716 APR2016 featuring:
- Enhanced serial data communication
- Min. 0.5μs tick time

On-chip signal processing
Flexible signal conditioning with 32-point programmable linear transfer characteristic
ASIL C compliant for all output modes (including analog), Safety Element out of Context (ISO 26262)
Overvoltage and reverse-polarity protection of ±24V maximum
Ambient operating temperature from -40°C to +160°C
TSSOP-16 package, RoHS compliant

Applications

Pedal position
Throttle position
Ride height position

Steering wheel position
Small angle position

Melexis MLX90513 Automotive Inductive Position Sensor

Features

Applications

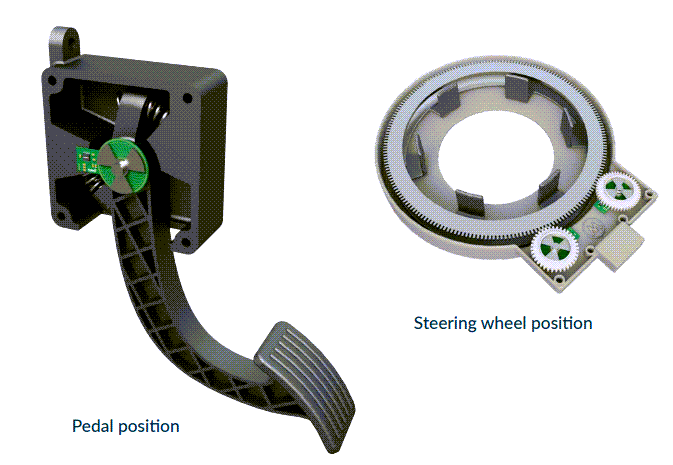

APPLICATION VISUAL

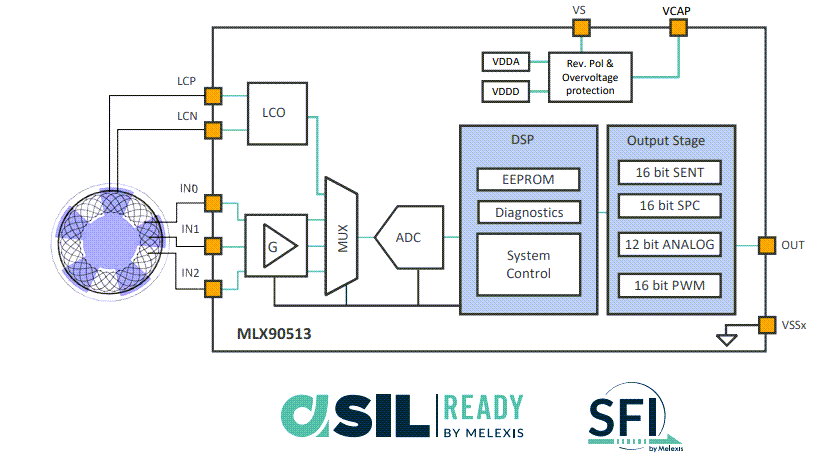

Block Diagram
