Melexis MLX90423 Triaxis® Magnetic 3D Position Sensors

Melexis MLX90423 Triaxis® Magnetic 3D Position Sensors consist of a Triaxis Hall magnetic front end, an analog-to-digital signal conditioner, a DSP for advanced signal processing, and a programmable output stage driver (analog, PWM, or SENT). Supporting an operating temperature up to +160°C, the linear stray field immune MLX90423 components provide superior capabilities in terms of functional safety, absolute maximum ratings (AMR), and electromagnetic compliance (EMC) characteristics. The Melexis MLX90423 sensors are designed for cost-sensitive automotive applications, including powertrain actuators, pedal positioning, fuel level gauges, and transmission systems. These devices are also suitable for industrial implementations.

Features

Ratiometric analog, PWM, or SENT-supported output modes
Programmable measurement range
Programmable linear transfer characteristic with up to 17 points
Operating temperature from -40°C to +160°C
Triaxis Hall technology
On-chip signal processing for robust absolute position sensing
Robustness against stray magnetic field up to 5mT (or 4kA/m) as per ISO 11452-8

RoHS-compliant packages
- SOIC-8 (DC) single die
- TSSOP-16 (GO) dual die (redundancy)
- SMP-3 (VE) single-die PCB-less solution
Certification
- AEC-Q100 Grade-0
- ISO 26262 ASIL B Safety Element out of Context (SEooC)

Applications

Absolute rotary position sensor
Pedal position sensor
Throttle position sensor
Ride height position sensor

Absolute linear position sensor
Steering wheel position sensor
Float-level sensor
Non-contacting potentiometer

Melexis MLX90423 Triaxis® Magnetic 3D Position Sensors

Features

Applications

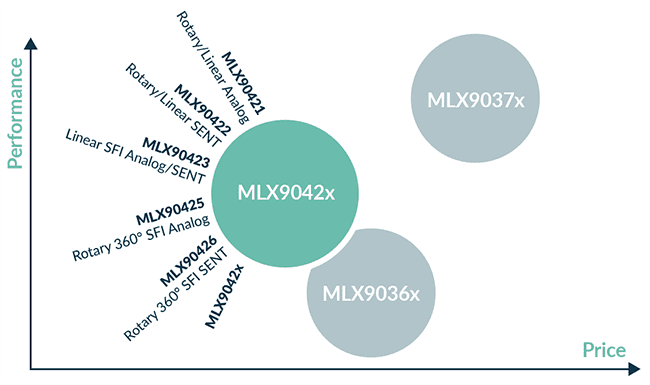

Performance vs Price
