Melexis MLX90395 Triaxis® Magnetometer Nodes

Melexis MLX90395 Triaxis® Magnetometer Nodes are miniature sensor ICs capable of measuring 3D magnetic fields, temperatures, and supply voltages. The automotive-grade 3D hall effect sensors can detect the absolute position of nearly any nearby magnet and includes programmable parameters to optimize power, noise, and speed. The MLX90395 selectable measurement data can be read over I²C or SPI bus. The sensors are runtime programmable and offer on-chip temperature compensation of the measured units. The selectable measurement duty cycle enables unsurpassed micro-power functionality. Melexis MLX90395 Triaxis Magnetometer Nodes are AEC-Q100 qualified.

Features

Triaxis hall technology
Automotive-grade (AEC-Q100)
Micro-power with programmable duty cycle
Selectable digital output
- 16-bit magnetic (XYZ)
- 16-bit supply voltage (V)
- 14-bit temperature (T)
At runtime programmable modes
- Single measurement
- Burst mode up to 2kHz (XYZ)
- Wake-up on change (WOC) mode

Programmable measurement range
Extended magnetic sensing range option
On-chip magnetic calibration data
8-bit measurement cyclic redundancy check (CRC)
Measurement counter
Selectable bus protocol/Slave node
- Up to 10MHz SPI or 1MHz I²C
48-bit unique ID number
RoHS compliant, green packages

Applications

HMI non-contacting potentiometers
- Joystick with push
- Rotary with push
- Linear (long stroke)
Top-column modules
- Stalk position
- Function sensor

Center stack
- Shifter position sensor
- Multimedia rotary/Push selector
- Knobs/Levers
Body control
- Door handle and door lock
- Mirror position

Melexis MLX90395 Triaxis® Magnetometer Nodes

Features

Applications

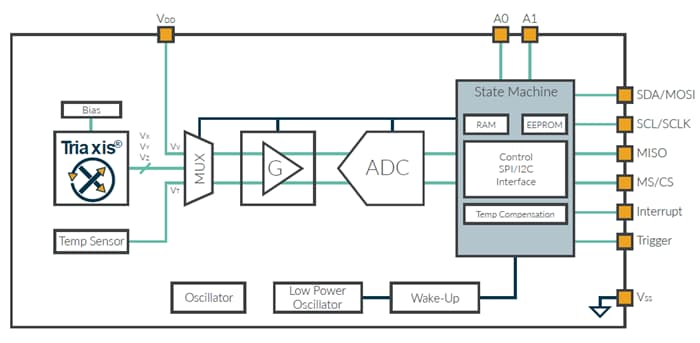

Block Diagram
