MEAN WELL XLG-320 315W Constant Power Mode LED Drivers

MEAN WELL XLG-320 315W Constant Power Mode LED Drivers feature high voltage output with operation from 100V_AC to 305V_AC and current ratings ranging from 1050mA to 1800mA. With high efficiency of up to 94.5%, with a fanless design, the XLG-320 LED Drivers operate from -40°C to +85°C with free air convection. The IP67 rated metal housing allows use in indoor and outdoor applications. An innovative environment-adaptive capability provides reliable power to light various LEDs in a wide range of environments. These power supplies comply with IEC 61347/GB7000.1-2015 and UL8750 international safety regulations. The output and dimming circuit are in accordance with regulations and isolation, ensuring safety to both the user and luminaire system during installation.

Features

Wide 100V_AC to 305V_AC input range, class I
Full power output at 75% to 100% constant power mode operation
Metal, IP67 case suitable for outdoor applications
Surge protection with 6KV/4KV

3-in-1 dimming (dim-to-off and isolation design)
Short circuit, overload, overvoltage, and over-temperature protection
Typical lifetime of >50,000 hours
5-year warranty

Applications

Bay lighting
Stage lighting
Floodlight lighting
Fishing lighting

Horticulture lighting
Stadium lighting
DMX power supplies
“HL” types for use in Class I, Division 2

Specifications

Output
- XLG-320-L-x
  - 1400mA default current
  - 315W rated power
  - 150V to 300V constant current range
  - 1050mA to 1400mA full power current range
  - 340V maximum open-circuit voltage
  - 500mA to 1400mA current adj. range
  - 5.0% maximum ripple current (at rated current)
  - ±5% current tolerance
  - 160ms typical rise and hold-up time
- XLG-320-M-x
  - 2800mA default current
  - 310.8W rated power
  - 74V to 148V constant current range
  - 2100mA to 2800mA full power current range
  - 180V maximum open-circuit voltage
  - 1050mA to 2800mA current adj. range
  - 5.0% maximum ripple current (at rated current)
  - ±5% current tolerance
  - 160ms typical rise and hold-up time
- XLG-320-H-x
  - 5600mA default current
  - 312W rated power
  - 30V to 56V constant current range
  - 5570mA to 7420mA full power current range
  - 60V maximum open-circuit voltage
  - 2800mA to 7420mA current adj. range
  - 5.0% maximum ripple current (at rated current)
  - ±5% current tolerance
  - 160ms typical rise and hold-up time
- XLG-320-V-x
  - 13A/24V default current
  - 24V/312W or 12V/216W rated power
  - 12V or 24V output voltage adj. range
  - 13A to 18A full power current range240mVp-p maximum ripple and noise
  - ±3% voltage tolerance
  - ±0.5% line regulation
  - ±2% load regulation
  - 10ms typical rise and hold-up time, from 115V_AC to 230V_AC
- 500ms set-up time at 230V_AC, 1200ms at 115V_AC

Input
- Voltage ranges
  - 100V_AC to 305V_AC
  - 142V_DC to 341V_DC
- 47Hz to 63Hz frequency range
- Typical power factor
  - ≥0.98 at 115V_AC
  - ≥0.95 at 230V_AC
  - ≥0.92 at 277V_AC, full load
- 92.5% to 94.5% typical efficiency
- Typical AC current
  - 3A at 120V_AC
  - 1.6A at 230V_AC
  - 1.3A at 277V_AC
- 45A typical inrush current at 230V_AC per NEMA 410, cold start
- <0.75mA leakage current at 277V_AC
- <0.5W standby power consumption
Temperatures
- -40°C to +85°C operating range
- +85°C maximum case temperature
- -40°C to +80°C storage
- ±0.03%/°C temperature coefficient
Relative humidity
- 20% to 95% operating, non-condensing
- 10% to 95% storage, non-condensing
246mm x 77mm x 39.5mm in dimension (LxWxH)

COMPANY

MEAN WELL XLG-320 315W Constant Power Mode LED Drivers

Features

Applications

Specifications

Videos

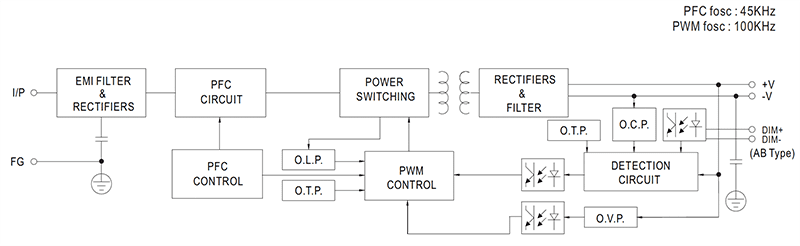

Block Diagram
