MEAN WELL XLG-20 21W Constant Current Mode LED Drivers

MEAN WELL XLG-20 21W Constant Current Mode LED Drivers are AC/DC LED drivers operating from 90V_AC to 305V_AC with high efficiency of up to 89%. The XLG-20 devices operate between a wide -40°C to +80°C temperature range with air convection. The metal housing and IP67 protection permit use in indoor and outdoor applications. Various function options, such as dimming methodologies, provide design flexibility for LED lighting systems. The MEAN WELL XLG-20 21W Constant Current Mode LED Drivers comply with IEC 61347/GB7000.1-2015 and UL8750 international safety regulations. The output and dimming circuit are in accordance with isolation regulations ensuring the safety of both user and luminaire system during installation.

Features

Constant current mode output
Wide 90V_AC to 305V_AC input range (Class I)
Built-in active PFC function
Class 2 power unit
No-load power consumption of <0.5W

IP67 rated for indoor/outdoor installations
3-in-1 dimming function (isolation design)
Short circuit protection
>50,000 hour lifetime
5-year warranty

Applications

Street lighting
Architectural lighting
Low bay lighting
Floodlight lighting

Industrial lighting
Type “HL” for use in Class I, Division 2 hazardous (classified) locations

Specifications

Output
- XLG-20-L-x models
  - 350mA rated current
  - 32.4V to 54V constant current range
  - 18.9W rated power
  - 60V maximum open-circuit voltage
- XLG-20-M-x models
  - 500mA rated current
  - 25.2V to 42V constant current range
  - 21W rated power
  - 50V maximum open-circuit voltage
- XLG-20-H-x models
  - 700mA rated current
  - 18V to 30V constant current range
  - 21W rated power
  - 40V maximum open-circuit voltage
- ±8.0% current tolerance
- <20% output current ripple
- Time
  - 500ms setup at 115V_AC
  - 150ms rise at 230V_AC

Input
- <±3% line regulation
- 47Hz to 63Hz frequency range
- Typical efficiencies
  - 89% for XLG-20-L-x
  - 88.5% for XLG-20-M-x
  - 88% for XLG-20-H-x
- 5A inrush current at 230V_AC, cold-start
- <0.75mA leakage current at 277V_AC
-40°C to +80°C temperature range
20% to 95% relative humidity, non-condensing
±0.03%/°C temperature coefficient (0 to +60°C)
95mm x 63mm x 30mm (LxWxH) in dimension

MEAN WELL XLG-20 21W Constant Current Mode LED Drivers

Features

Applications

Specifications

Videos

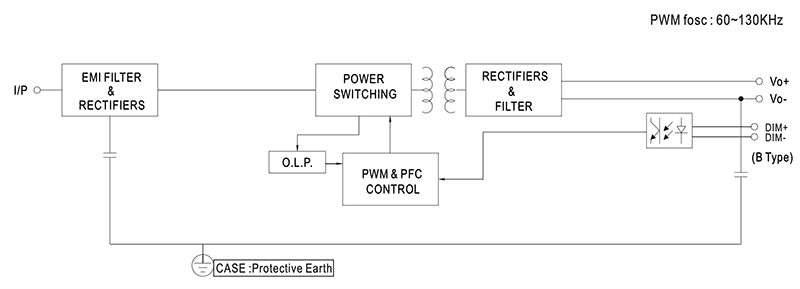

Block Diagram
