MEAN WELL VFD-x50P-48 General-Type Frequency Drives

MEAN WELL VFD-x50P-48 General-Type Frequency Drives are available with three different output power ratings: 150W, 250W, and 350W. These drives can be controlled with an external PWM controller and feature multiple protections, including short circuit and overcurrent. VFD-48 drives have a 4″ x 2″ miniature size and are able to deliver 200% peak load with a fanless design, extending expected life. MEAN WELL VFD-x50P-48 General-Type Frequency Drives are ideal for three-phase motor drivers, such as BLDC, inductor motors, and SynRM applications.

Features

Controllable with external controller
Fanless design for no-noise and expanding life cycle
Short-circuit protection
Overcurrent protection
Suitable for 3-phase motor drives

Provided multiple sensors for control
- Current sensor – motor torque control
- DC bus voltage sensor – overvoltage/undervoltage protection
- Temperature sensor – overtemperature protection

Applications

Fans
Pumps
Automatic doors
Portable power tools
Automated guided vehicles (AGVs)

Robots
Auto-packing machines
Medical devices
Fitness equipment

Specifications

4″ x 2″ miniature size
150W, 250W, and 350W output power rating
20V_DC to 55V_DC input range
200% surge current up to 5s

93% maximum efficiency
4.3A to 10A output current range
-30°C to +70°C operating temperature range

MEAN WELL VFD-x50P-48 General-Type Frequency Drives

Features

Applications

Specifications

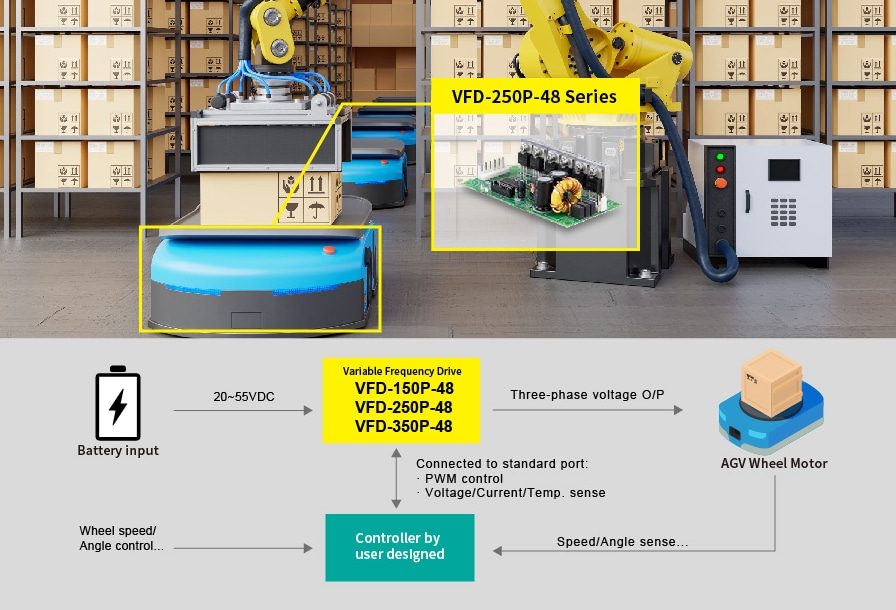

AGV Drive Solution
