MEAN WELL VFD-C-230 Frequency Drives with PFC Function

MEAN WELL VFD-C-230 Frequency Drives with PFC Function offer a 90V_AC to 264V_AC input voltage range and 200W, 350W, and 750W output capacity ratings. These frequency drives can be controlled with an external PWM controller and feature a fanless design for no-noise and expanded lifecycle. Due to the wide input voltage range, VFD-C-230 drives are suitable for all kinds of installation, and they are able to deliver 200% peak load. Multiple protections are provided, including overcurrent, short circuit, and overtemperature. MEAN WELL VFD-C-230 Frequency Drives are ideal for fans, pumps, automatic doors, and three-phase motor drives.

Features

Controllable with an external controller
Fanless design for no-noise and expanding life cycle
Short-circuit protection
Overcurrent protection
Suitable for 3-phase motor drives

Provided multiple sensors for control
- Current sensor – motor torque control
- DC bus voltage sensor – overvoltage/undervoltage protection
- Temperature sensor – overtemperature protection

Applications

HVAC
Fans
Pumps
Automatic doors

Air condition
Conveyors
Medical devices
Fitness equipment

Specifications

90V_AC to 264V_AC input range
200% surge current up to 5s
0.8A to 3A rated output current
Up to 93% efficiency

47Hz to 63Hz frequency range
200W, 350W, and 750W output capacity
-30°C to +60°C operating temperature range
-30°C to +70°C operating temperature range (VFD-200C-230)

MEAN WELL VFD-C-230 Frequency Drives with PFC Function

Features

Applications

Specifications

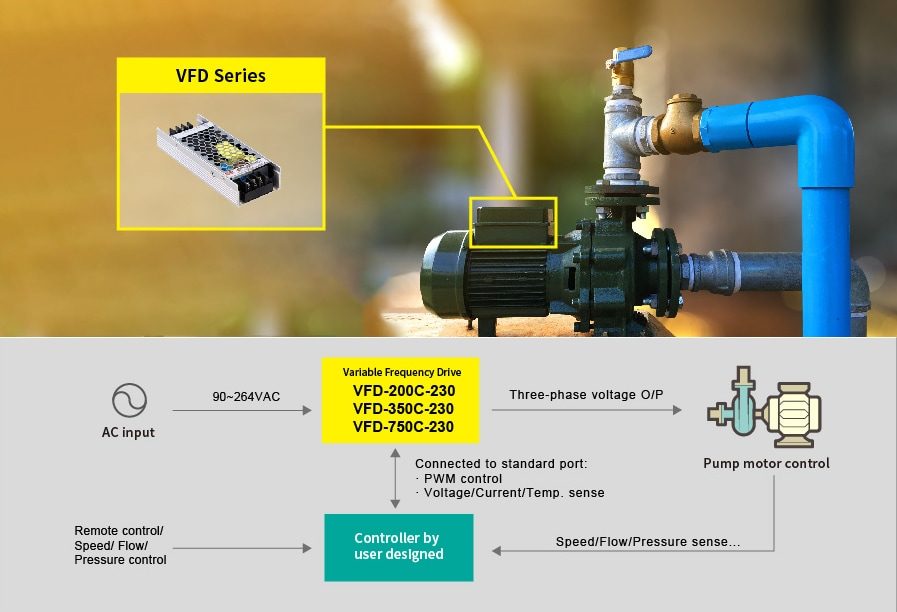

Water Pump Drive Solution
