MEAN WELL SKMW06 & DKMW06 6W DC-DC Regulated Converters

MEAN WELL SKMW06 Single-Output and DKMW06 Dual-Output 6W DC-DC Regulated Converters are isolated and regulated module-type DC-DC converters in a DIP 25.4mm x 25.4mm (1″ x 1″) package. MEAN WELL SKMW06 and DKMW06 DC-DC Regulated Converters feature international-standard pins, a efficiency up to 86%, and a -40C to +85C operating temperature range. These DC-DC converters also provide 1.5kVDC I/O isolation voltage and comply with EN55032 radiated Class A without additional components. The series also provides continuous-mode short circuit, overload, over temperature, and input under voltage protections. SKMW and DKMW06 are suitable for a variety of applications, including industrial control, telecommunications, and distributed power architectures.

Features

DIP 25.4mm x 25.4mm (1″ x 1″) package with industry-standard pinout
4:1 ultra-wide input range
-40°C to +85°C operating temperature range
No minimum load required
Complies with EN55032 radiated Class A without additional components
Up to 86% efficiency
Single-output (SKMW06) and dual-output (DKMW06) versions

Protections
- Short circuit (continuous)
- Overload
- Over voltage
- Input under voltage
1.5kV_DC I/O isolation
Three-year warranty

Applications

Telecom / datacom systems
Wireless networks
Industrial-control facilities
Instruments

Analyzers
Detectors
Data switches

MEAN WELL SKMW06 & DKMW06 6W DC-DC Regulated Converters

Features

Applications

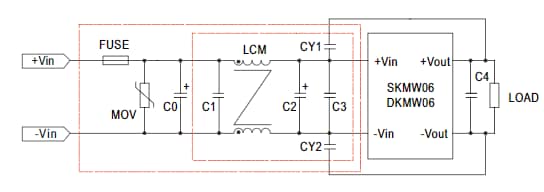

Suggested Circuit
