MEAN WELL SHP-30K-HV 30KW Digital Power Supplies

MEAN WELL SHP-30K-HV 30KW Digital Power Supplies offer a wide input range of 340V_AC to 530V_AC, 346A maximum current rating, and efficiency up to 97%. These power supplies feature built-in CANBus, optional PMBus, MODBus-RTU, and RS-485 protocols and are output voltage and constant current level programmable. The SHP-30K-HV series power supplies have forced air cooling, built-in remote ON/OFF control, and numerous protections, including short circuits, overload, overtemperature, and overvoltage. MEAN WELL SHP-30K-HV 30KW Digital Power Supplies are suitable for electrolysis systems, laser processing machines, electric vehicle (EV) charging stations, and energy and power systems for automation.

Features

Forced air cooling
Built-in CANBus / optional PMBus / MODBus-RTU / RS-485 protocols
Output voltage and constant current level programmable
Built-in remote ON/OFF control
Auxiliary power
Alarm signal

3-wire without neutral
Active current sharing up to 12 units
Short-circuit, overload, overvoltage, and overtemperature protection
Fan fail protection
Double insulation for 55V model

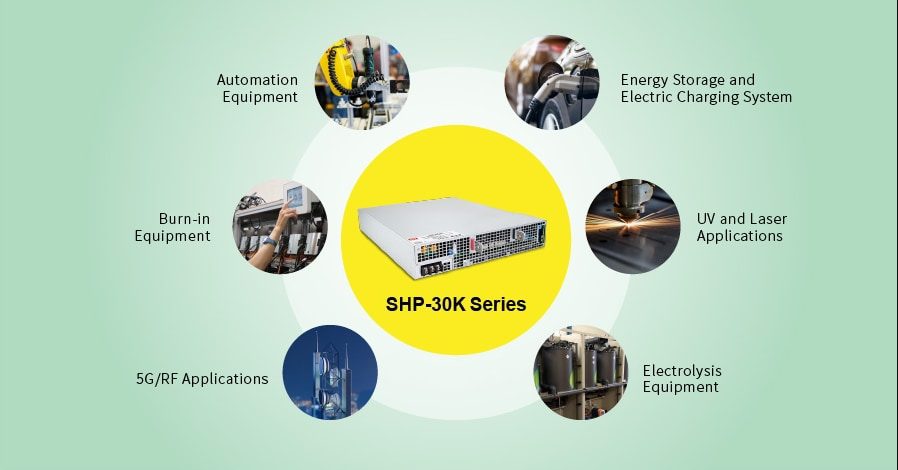

Applications

Energy and power systems for automation
UV or laser diodes
Electrolysis systems
Laser processing machines

Burn-in facilities
RF
EV charging stations

Specifications

340V_AC to 530V_AC Input range
Up to 97% Efficiency
55V_DC to 380V_DC Voltage range
346A Maximum current rating

47Hz to 63Hz Frequency range
<13mA Peak leakage current
30,000W Maximum rated power
-30°C to +70°C Operating temperature range
