MEAN WELL SHP-10K High-Efficiency Digital Power Supplies

MEAN WELL SHP-10K High-Efficiency Digital Power Supplies are 10KW 3φ3W input AC-DC power supplies with 55V_DC, 115V_DC, 230V_DC, and 380V_DC outputs. The SHP-10K devices operate in a broad three-phase AC input (3 phase 3 wire, 340V_AC to 530V_AC) range where the neutral is not needed. Two cooling variants (forced air or water) operate in ambient temperatures up to +70°C. The MEAN WELL SHP-10K power supplies provide vast design flexibility by equipping various built-in functions such as output programming, active current sharing, remote ON/OFF control, auxiliary power, and communication protocols. These built-in functions enhance the automation process.

Features

3ψ 3-wire without Neutral, wide 340V_AC to 530V_AC input range
High efficiency up to 97%
Selectable water/forced air cooling
Built-in CANBus, optional PMBus, MODBus-RTU, and RS-484 protocols
Programmable output voltage and constant current levels
5-year warranty

Active current sharing up to 4x units (40KW)
Built-in remote ON/OFF control, auxiliary power, and alarm signal
Short circuit, overload, overvoltage, over-temperature, and fan fail protections
Optional cooling plate (HS-684) for water-cooled models

Applications

Energy/power systems for automation
UV or laser diodes
Electrolysis systems
Laser processing machines

Burn-in facilities
RF
EV charging stations

Specifications

Output
- 55V_DC to 380V_DC range, factory default
- 26.3A to 131A current, factory default
- 0 to 150A current range
- 7200W to 10,000W maximum rated power range
- 0.3Vp-p to 1Vp-p maximum ripple and noise
- ±1.0% voltage tolerance
- ±0.5% line/load regulation
- 3000ms setup/rise time, 100ms at full load
- 20ms (full load) or 25ms (75% load) typical hold-up time at 400V_AC
Temperature ranges
- -30°C to +70°C operating
- -40°C to +85°C storage
Relative humidity, non-condensing
- 20% to 90% operating
- 10% to 95% storage
±0.03%/°C temperature coefficient

Input
- 340V_AC to 530V_AC voltage range
- 47Hz to 63Hz frequency range
- ≥0.98 typical power factor
- 94.5% to 96.5% typical efficiency range
- Typical AC current range
  - 11.2A to 15.7A at 400V_AC
  - 9.5A to 13A at 480V_AC
- Typical inrush current
  - 40A at 400V_AC
  - 65A at 480V_AC
- <6.5mA peak leakage current at 530V_AC
Minimum Mean time before failure (MTBF)
- 281.2K hours per Telecordia SR-332 (Bellcore)
- 28K hours per MIL-HDBK-217F (+25°C)
Dimensions (LxWxH)
- 460mm x 211mm x 83.5mm for forced-air cooling types
- 460mm x 216mm x 83.5mm for water cooling types

MEAN WELL SHP-10K High-Efficiency Digital Power Supplies

Features

Applications

Specifications

Videos

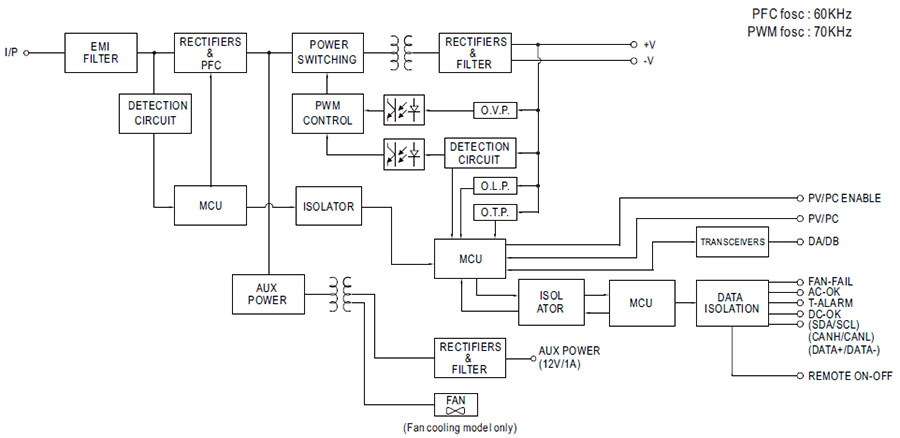

Block Diagram
