MEAN WELL NTS-750 750W True Sine Wave DC-AC Power Inverters

MEAN WELL NTS-750 750W True Sine Wave DC-AC Power Inverters are compact and lightweight devices providing true sine wave output (THD <3%). These highly reliable off-grid inverters feature microcontroller (MCU) control and streamlined control circuitry that quickly responds to environmental changes and improves reliability. MEAN WELL NTS-750 750W True Sine Wave DC-AC Power Inverters feature 1500W peak power, a quality fan with low acoustic noise, and an adjustable AC output voltage and frequency. The series operates over a -25°C to +70°C temperature range and includes complete protection features. NTS-750 is ideal for use in a variety of residential, commercial, marine, automotive, mine, and construction site applications.

Features

Lightweight, compact size
True sine wave output (THD <3%)
Up to 1500W high surge power
750W output power
Protections
- Input
  - Reverse polarity
  - DC low alarm
  - DC low shutdown
  - Overvoltage
- Output
  - Short circuit
  - Overload
  - Over-temperature

Temperature-controlled cooling fan
AC output voltage and frequency selectable by DIP switch
<1.5W no-load dissipation at standby saving mode
Power ON-OFF remote control
Front panel indicator for operation status
-25°C to +70°C operating temperature range
Battery over-discharge protection (low-voltage disconnect)
Suitable for lead-acid or li-ion batteries
Remote controller and pull handle accessories available
Conformal coating
Three-year warranty

Applications

Home and office appliances
Power tools
Portable equipment
Vehicles

Yachts
Off-grid solar power systems
Wireless networks
Telecom or datacom systems

MEAN WELL NTS-750 750W True Sine Wave DC-AC Power Inverters

Features

Applications

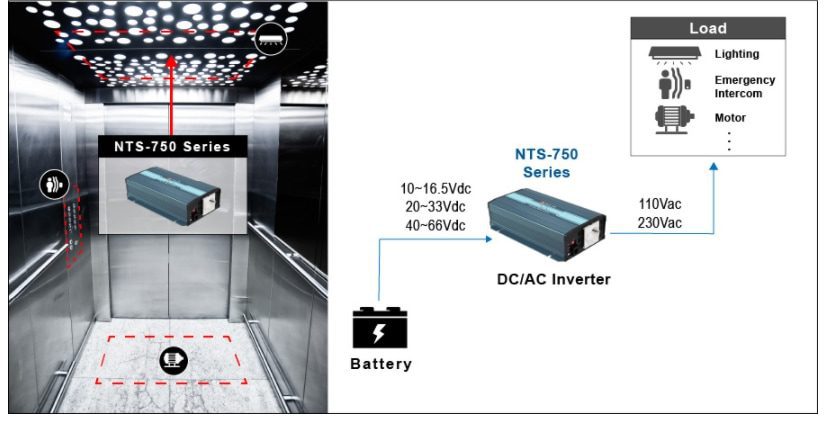

AC Power Backup Systems for Elevators
