MEAN WELL GST360B 360W AC-DC Industrial Adapters

MEAN WELL GST360B 360W AC-DC Industrial Adapters feature a two-pole AC inlet IEC320-C18 (Class II), safety certifications for countries worldwide, and Level VI energy efficiency. These desktop-style, single-output adapters are highly reliable and provide output voltages from 12V_DC to 55V_DC to accommodate a wide range of consumer electronic devices. The GST360B series offers an efficiency of up to 95.0% and <0.5W no-load power consumption. The units are compliant with USA EISA 2007/DoE, Canada NRCan, allowing the adapters to save energy under operating mode and standby mode. Applications for MEAN WELL GST360B 360W AC-DC Industrial Adapters include consumer electronic devices, telecommunication, industrial equipment, 3D printers, game consoles, power sourcing equipment for power over Ethernet (PoE), and more.

Features

Global certificates
450W peak power (3s)
Universal AC input / full range

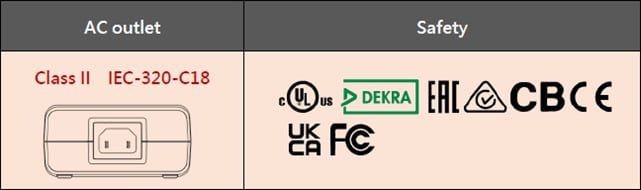

2-pole AC inlet IEC320-C18, Class II power unit
Built-in active PFC function
<0.5W no-load power consumption
Short-circuit, overload, overvoltage, and overtemperature protection

Energy efficiency level VI
Complies with international energy-saving standards
Fanless design with -30°C to +70°C working temperature range
Fully enclosed plastic case
LED indicator for power on
Safety approvals: CB / UL / CUL / DEKRA / EAC / RCM / CB / CE / UKCA / FCC
3-year warranty

Applications

Consumer electronic devices
Telecommunication devices
Office facilities
Industrial equipment

3D printers
Game consoles
Vision mixers
Power sourcing equipment for PoE

MEAN WELL GST360B 360W AC-DC Industrial Adapters

Features

Applications

Safety Approvals
