MEAN WELL GST360A 360W AC-DC Industrial Adapters

MEAN WELL GST360A 360W AC-DC Industrial Adapters feature industrial-grade durability, global market suitability, and an environmentally friendly high-efficiency design. The MEAN WELL GST360A is rated for 360W power output and is equipped with a standard IEC320-C14 AC inlet. These energy-saving AC-DC adapters feature an 85V_AC to 264V_AC input range and an output voltage range of 12V_DC and 55V_DC for various types of consumer electronic devices. With efficiency up to 95.0% and no-load power consumption below 0.5W, the GST360A is compliant with USA EISA 2007/DoE, Canada NRCan. The entire series utilizes a 94V-0 flame retardant plastic case. GST360A is certified for international safety regulations.

Features

Global certificates
450W peak power (3s)
Universal AC input / full range
3-pole AC inlet IEC320-C14.Class I power unit
Built-in active PFC function
<0.5W power consumption
Energy efficiency Level VI

Short-circuit, overload, overvoltage, and overtemperature protection
Complies with international energy-saving standards
Fanless design with -30°C to +70°C working temperature range
Fully enclosed plastic case
LED indicator for power on
Three-year warranty

Applications

Consumer electronic devices
Telecommunication devices
Office facilities
Industrial equipment

3D printers
Game consoles
Vision mixers
Power sourcing equipment for PoE

MEAN WELL GST360A 360W AC-DC Industrial Adapters

Features

Applications

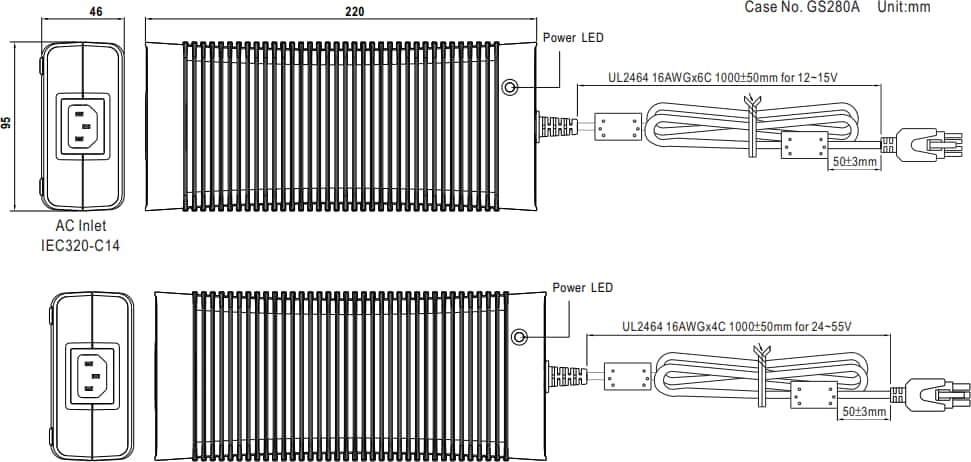

Dimensions
