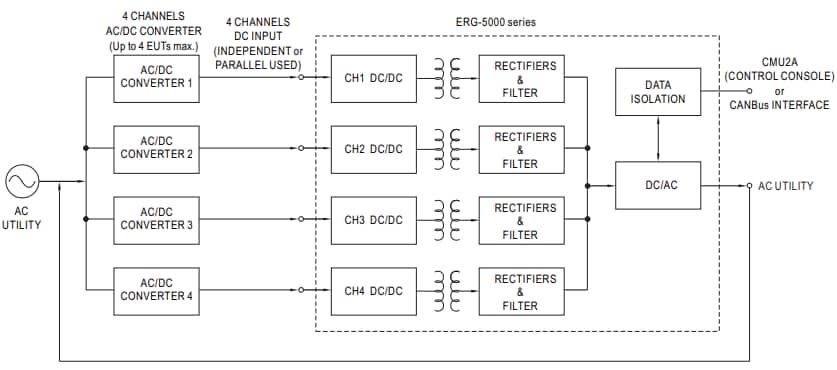

MEAN WELL ERG-5000 5KW Energy Recycling Power Inverters offer a complete solution for the manufacturing, production of energy, and recycling of energy. These 4-channel grid-type power inverters also offer a solution for integrating recycled energy into the indoor power grid. The ERG-5000 power inverters provide input voltage models with the blank type (10VDC to 60VDC) and H type (60VDC to 420VDC). These power inverters offer remote control and monitoring functions using CMU2A and the CANBus protocol. The ERG-5000 power inverters include CC/CV operation modes and four input channel designs that can be used independently or connected in series or parallel.
The ERG-5000 power inverters feature up to 91% high efficiency, modular design for flexible configuration, and 47Hz to 63Hz AC grid frequency. These power converters also feature 24A/230VAC maximum output current, up to 6KW maximum input power, and greater than 0.97 power factor. The ERG-5000 power inverters comply with BS EN/EN55032 (CISPR32) Class A and BS EN/EN55035, BS EN/EN61000-4-2, 3, 4, 5, and 6 light industry level, criteria A. The ERG-5000 power inverters are used in energy recycling systems, connector mechanical tests, battery tests, and power supply aging systems.
