MEAN WELL DRC-180 DIN Rail Security Power Supplies

MEAN WELL DRC-180 DIN Rail Security Power Supplies are ideal for use in security systems, emergency lighting systems, alarm systems, uninterruptible power supplies (UPS), and more. These 180W modules feature a universal input (90V_AC to 264V_AC) with built-in power factor correction (PFC) and a fanless design for free air convection cooling. The DC output side is divided into the main output (CH1), which can be used for load equipment, and the auxiliary output (CH2), which can simultaneously charge the battery. MEAN WELL DRC-180 DIN Rail Security Power Supplies also offer AC OK and battery low voltage alarm, and can form a DC-UPS backup system with an external battery. The units are suitable for installation in TS-35/7.5 or TS-35/15 rails inside power distribution boxes.

Features

Universal input 90V_AC to 264V_AC with built-in PFC
Fanless design, free air convection cooling
-20°C to +70°C operating temperature range
Protections: output short circuit, overload, overvoltage, overtemperature, battery low voltage disconnect, battery reverse polarity (by fuse)

AC OK and battery low voltage alarm (via relay)
Suitable for DIN rail mounting on TS-35/7.5 or TS-35/15
Operation altitude up to 5000m
UL/ CUL/ DEKRA/ RCM/ EAC/ CB/ CE/ UKCA safety approvals
63mm x 125.2mm x 115mm (W x H x D) dimensions
3-year warranty

Applications

Security systems
Emergency lighting systems
Alarm systems

UPS systems
Central monitoring systems
Access systems

MEAN WELL DRC-180 DIN Rail Security Power Supplies

Features

Applications

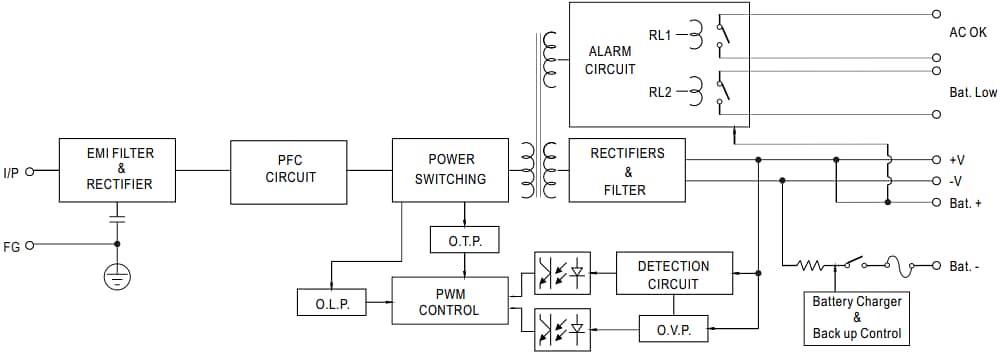

Block Diagram
