Maxtena MEA-LGI-SMA Screw Mount Antenna

Maxtena MEA-LGI-SMA Screw Mount Antenna is a 3-in-1 low-profile antenna solution that offers very high performance and is ideal for maintaining constant network connectivity. The MEA-LGI-SMA covers all 5GNR, Iridium, and GPS/GLONASS/QZSS/Galileo standard frequencies. The high performance and low profile make this antenna ideal for the most challenging installations. This screw mount antenna is easy to install with maximum durability offering IP67 rated housing and anti-rotation mounting. The MEA-LGI-SMA features three cables with SMA-male standard connectors, 2 meters standard cable length. This antenna is fully customizable by offering additional connector types and cable lengths, and cable types. Typical applications include IoTs, telematics, navigation, satellite communications, and LTE applications.

Features

3 in 1 antenna:
- 5GNR, Iridium, and GNSS
Ultra-wideband antenna
High performance
Screw mount
Anti-rotation mounting
Optimized for Iridium network
Ground plane independent
Customizable cable and connector

SMA male connector
Antenna color:
- Black and white
Radome type:
- PC + ASA
Low profile
IP69 and IP67 certifications
RoHS compliant

Specifications

5Nm maximum tighten torque
80mm x 74mm x 25.6mm antenna dimensions
-40˚C to 85˚C operating temperature range
200cm cable length
Cable1:
- Technology:
  - 5G, 4G, 3G, and 2G
- 617MHz to 960MHz frequency range:
- - -8.9dB return loss
  - 2.6:1 VSWR
  - 55% efficiency
  - 2.3dBi peak gain
  - -2.7dB average gain
- 1427MHz to 2690MHz frequency range:
  - -9.2dB return loss
  - 2.4:1 VSWR
  - 51.2% efficiency
  - 5.1dBi peak gain
  - -3.1dB average gain
- 3300MHz to 5500MHz frequency range:
  - -8.2dB return loss
  - 2.7:1 VSWR
  - 25.7% efficiency
  - 2.6dBi peak gain
  - -6.7dB average gain
- 5150MHz to 5925MHz frequency range:
  - -7.5dB return loss
  - 2.5:1 VSWR
  - 28.3% efficiency
  - 2.7dBi peak gain
  - -5.5dB average gain
  - 50Ω impedance
  - Linear polarization
- Omni-directional radiation pattern
- 25W maximum input power

Cable2:
- 1616MHz to 1627MHz frequency range
- Iridium band
- -12.5dB return loss
- 1.6:1 VSWR
- 68.1% efficiency
- 5.2dBic peak gain
- -1.8dB average gain
- Hemispherical radiation pattern
- RHCP polarization
Cable3:
- 1559MHz to 1608MHz frequency range
- GPS/GLONASS/QZSS/Galileo band
- ≤-15dB return loss
- 1.4:1 VSWR
- 68.1% efficiency
- 50Ω impedance
- Active gain:
  - 28dB @2.7V
- Hemispherical radiation pattern
- Polarization RHCP
- Saw filter type:
  - Pre-filter
- 1.5dB typical noise figure
- 1.5V to 3.6V operating voltage range
- 9mA typical current consumption
- 24.3mW typical power consumption
- 2kV ESD protection

Applications

IoTs
Telematics
Navigation

Satellite communications
LTE

Maxtena MEA-LGI-SMA Screw Mount Antenna

Features

Specifications

Applications

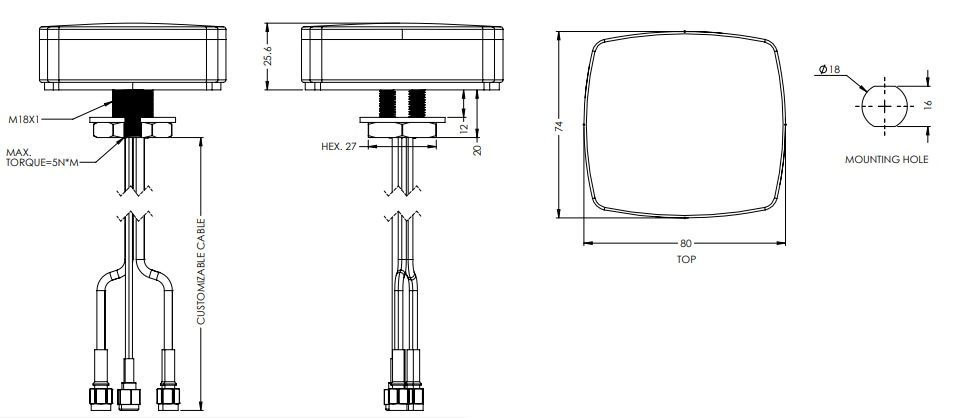

Mechanical Dimension
