Maxtena M1590HCT-LP-MM Inmarsat Magnet Mount Antenna

Maxtena M1590HCT-LP-MM Inmarsat Magnet Mount Antenna is a high-performance low-profile antenna designed for the Inmarsat network. This antenna is built on proprietary Maxtena Helicore^® technology that provides exceptional pattern control, polarization purity, and high efficiency in a very rugged and compact form factor. The M1590HCT-LP-MM Inmarsat magnet mount antenna features an omnidirectional antenna pattern that allows easy installation in any location. This antenna features a custom cable and SMA connector and is designed to be magnet mounted onto any surface. The M1590HCT-LP-MM Inmarsat magnet mount antenna is IP67 rated and optimized for harsh environments on both land and maritime applications.

Features

Optimized for the Inmarsat network
IP66 and ROHS compliant
Ground plane independent
High gain and low axial ratio

Magnet mount
Low profile
RHCP polarization
SMA RF connector

Specifications

Frequency range:
- 1525MHz to 1560MHz
- 1625MHz to 1660MHz
134g weight
-40°C to 85°C operating temperature range
Φ84mm x 37.4mm dimensions
50Ω impedance

60% peak efficiency
2:1 VSWR
2dBic antenna peak efficiency
157° beamwidth

Applications

Inmarsat IoT applications
Vehicle and fleet tracking
Military and security
Asset tracking
Oil and gas industries

Navigation devices
Mining equipment
LBS and M2M applications
Law enforcement

Maxtena M1590HCT-LP-MM Inmarsat Magnet Mount Antenna

Features

Specifications

Applications

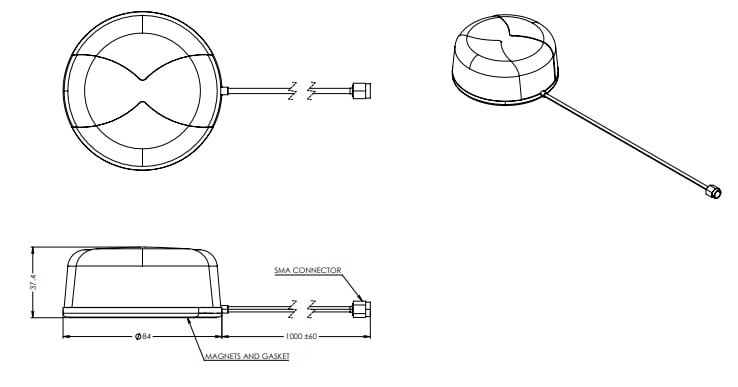

Mechanical Dimensions
