MaxLinear MxL83411 Quad RS-485/422 Receivers

MaxLinear MxL83411 Quad RS-485/422 Receivers are monolithic differential receivers that support communication up to 10Mbps in extreme industrial environments. These receivers feature bus pins that tolerate IEC Electrical Fast Transients (EFT) and IEC Electrostatic Discharge (ESD). The MxL83411 receivers feature glitch-free power-up/power-down for hot plug-in capability and a channel-to-channel propagation delay skew of ±6ns. These receivers are available in a global enable configuration, which allows all four channels to be turned on or off simultaneously. The MxL83411 receivers offer a wide 3.3V to 5V input voltage range and input hysteresis. Typical applications include industrial and process control equipment, level translators, telecommunication equipment, high-performance motor drives, smart grid, and industrial transport.

Features

Meet or exceed the requirements of the TIA/EIA-485A and EIA/TIA-422B standards
Fail-safe open receiver (Rx) inputs
1/4 unit load (128 bus nodes)

Available in global enable configuration
Glitch-free power-up/power-down for hot plug-in capability

Specifications

Robust system protection:
- ±2kV EFT (IEC 61000-4-4)
- ±8kV ESD contact (IEC 61000-4-2)
- ±15kV ESD human body model
3.3V to 5V input voltage range
-7V to 12V operational common-mode range
High-data rates up to 10Mbps
Channel-to-channel propagation delay skew of ±6ns

Package/case:
- TSSOP16
- NSOIC16
Operating temperature range:
- MXL83411I:
  - -40°C to 85°C
- MXL83411E:
  - -40°C to 125°C

Applications

Industrial and process control equipment
Level translators
Telecommunication equipment

High-performance motor drives
Smart grid
Industrial transport

MaxLinear MxL83411 Quad RS-485/422 Receivers

Features

Specifications

Applications

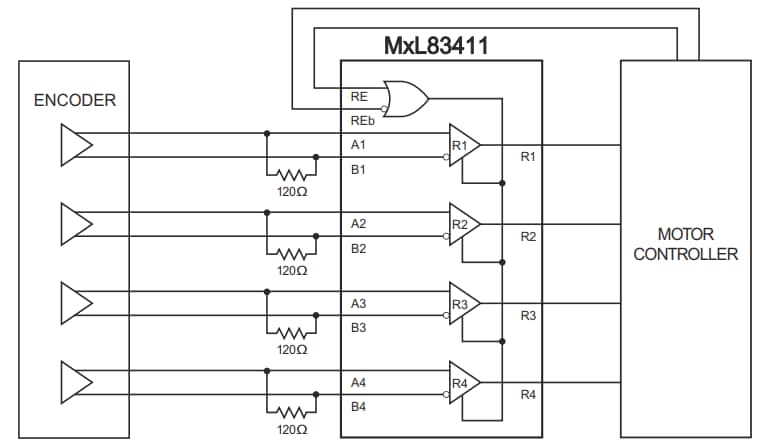

Typical Application Schematic

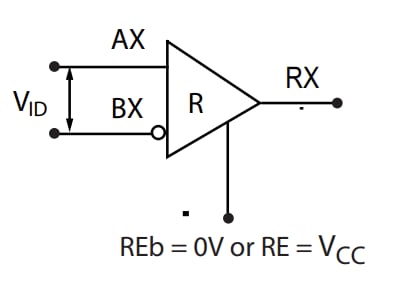

Receiver DC Test Circuit
