MaxLinear DMI920 G.hn Wave-2 Evaluation Kit

MaxLinear DMI920 G.hn Wave-2 Evaluation Kit offers a simple way to evaluate the MaxLinear G.hn Wave-2 Networking solution over powerline, twisted pair, or coaxial cable. This kit utilizes the 88LX5153A Wave-2 Digital Baseband (DBB) processor and the 88LX2741 Analog Front End (AFE) integrated circuits (ICs).

When used with the MaxLinear G.hn Spirit Grid software, it supports a large-scale, multi-hop network of up to 250 nodes in a single network domain. Spirit Grid’s self-organize-network feature enables autonomous device installation and configuration, optimal signal path selection, and network self-healing capabilities. It can also auto-configure the client to simultaneously perform the repeating function, eliminating the need for a dedicated repeater typically needed by other broadband powerline technologies.

The DMI920 Evaluation Kit is MaxLinear’s G.hn industrial IoT multi-medium, multi-interface evaluation kit. It combines the G.hn transceiver solution with MaxLinear’s pre-programmed 3-Output PMIC (XR77103-GR12), 1G Ethernet PHY (GPY115), USB to Ethernet Bridge (XR22800), and multi-protocol transceiver (SP336E).

Features

G.hn Wave-2 DBB/AFE Chipset (88LX5153A/88LX2741) supports
- MAC throughput of up to 1.0Gbps over powerlines and 1.7Gbps over twisted pair and coaxial cables
- Twisted pair MIMO 100MHz and SISO 200MHz G.hn profiles
- Powerline MIMO 100MHz and SISO 100MHz G.hn profiles
- 1.0Gbps maximum net throughput over powerlines and 2Gbit/s over twisted pair and coaxial cables
- 1000Base-T data interface
- Powerline Neighboring Domain Interference Mitigation (NDIM)
- On-chip remote management support
- Optimized power consumption with power-saving mode

Multi-medium evaluation kit transmits data over
- AC or DC powerlines
- Twisted pair
- Coax cable
Multi-interface evaluation kit supports
- Gigabit Ethernet
- RS-485/RS-232
- USB
Max. 250 clients and 16 hops (integrated repeater) in single network domain

Kit Contents

Two G.hn adapters and accessories
Adapters utilize the 88LX2741 AFE & 88LX5153A DBB processor along with the two G.hn adapters. The adapters also use MaxLinear’s pre-programmed 3-Output PMIC (XR77103-G1R2), 1G Ethernet PHY (GPY115), USB to Ethernet Bridge (XR22800), and multi-protocol transceiver (SP336E)

Applications

G.hn Wave-2 powerline, twisted pair, or coaxial cable networking
Smart elevator control
Fire alarm control panel
Smart parking system control

Smart fuel dispenser system
Building entry/access control
Building security and surveillance
Smart building data backbone

Videos

Resources

User Guide
G.hn Industrial IoT Networking Products Flyer

MaxLinear DMI920 G.hn Wave-2 Evaluation Kit

Features

Kit Contents

Applications

Videos

Resources

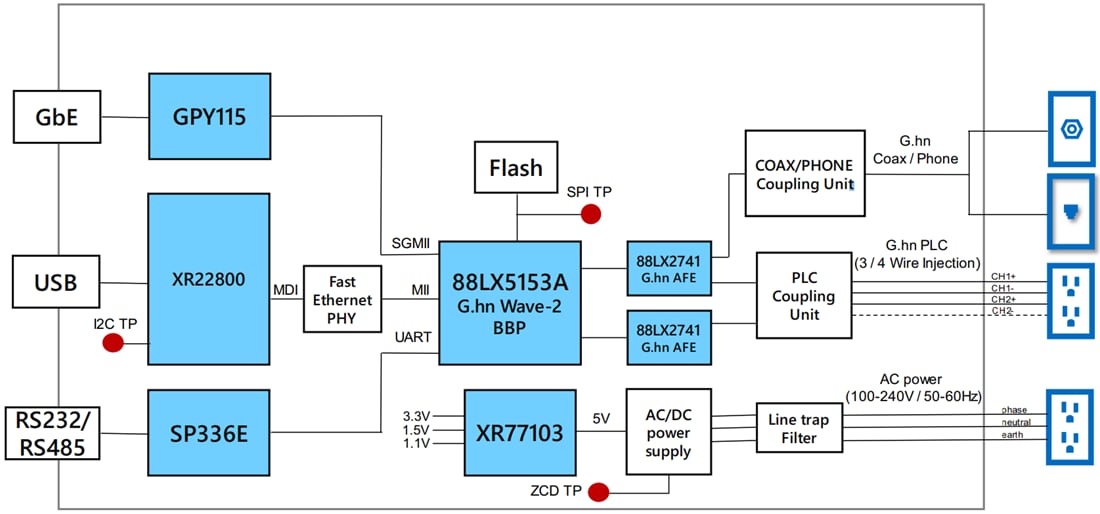

Block Diagram
