MATRIX Industries PRMT02-34465 Prometheus Energy Harvesting Modules

MATRIX Industries PRMT02-34465 Prometheus Energy Harvesting Modules convert thermal energy between small temperature gradients into useful electrical output, enabling users to power a device or recharge a battery or supercapacitor. The PRMT02-34465 Modules integrate a Gemini Thermoelectric Generator (TEG) with a Mercury Energy Harvesting Boost Converter. This patented technology ensures perfect electrical impedance matching between the TEG and its companion Boost Converter.

The MATRIX Industries PRMT02-34465 Prometheus Energy Harvesting Modules are available in a 34.0mm x 46.0mm x 5.1mm form factor.

Features

Combines a high-performance TEG with a highly efficient energy harvesting boost converter
Starts up from a temperature difference as low as 0.5°C
Wide range of thermal impedances for a variety of applications

Add a heat sink and mount it to a heat source
Electrical impedance matching
No additional charger circuitry
Works with a variety of battery types

Applications

Wearables and watches
IoT devices
Sensor networks

Wireless transmitters
Battery chargers

Specifications

2K/W thermal resistance
281mW cold-start heat flow
2V to 5V maximum V_OUT
+24.9°C source-ambient temperature difference
+47.9°C source temperature at T_AMB = +23°C
+0.6°C cold-start temperature difference
0MPa to 150Mpa compression range

-40°C to +85°C cold side operating temperature range
+150°C maximum hot side temperature
-55°C to +120°C storage temperature range
-0.5V to 7V V_OUT voltage to GND
-2kV to +2kV Electrostatic discharge (ESD) for Human Body Model (HBM) according to ANSI/ESDA/JEDEC JS-001-2014
18.0mm x 30.0mm x 5.1mm form factor

Resources

Datasheet
Product Brief

MATRIX Industries PRMT02-34465 Prometheus Energy Harvesting Modules

Features

Applications

Specifications

Resources

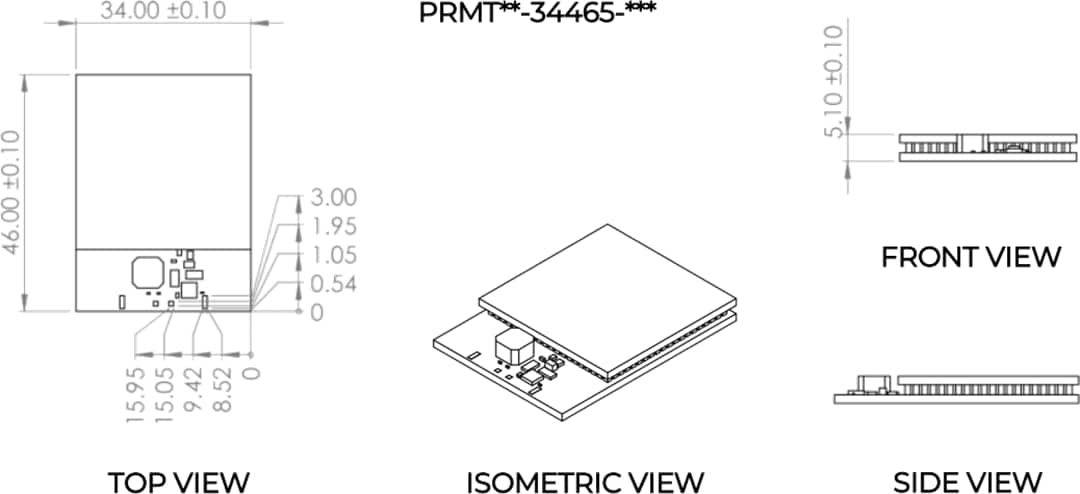

Dimensions

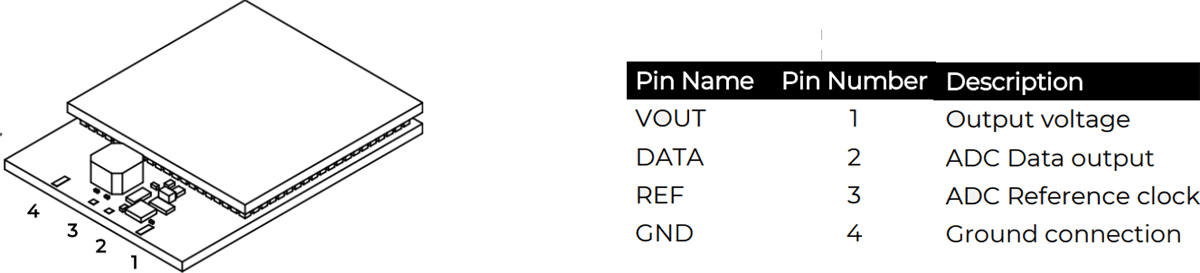

Pinout
