Mallory Sonalert Transducers & Indicators

Mallory Sonalert has released an expanded portfolio of surface-mounted technology (SMT) transducers and indicators. The transducers deliver an increased noise (dB) level within compact package sizes. The transducers utilize cutting-edge electromagnetic technology to provide an optimized user experience. The indicators also incorporate electromagnetic technology, which enables very loud noise levels at a low voltage range.

Features

Increased noise levels
Compact package sizes

Utilizes electromagnetic technology
Low voltage range

Specifications

ASI
- 2700Hz oscillation frequency
- 2V_DC to 5V_DC operating voltage range
- 3V_DC rated voltage
- 30mA max current consumption at 3V_DC
- 80dB min sound pressure level at 10cm
- Constant tone/pulse rate
- -20°C to +70°C operating temperature range
- -30°C to +80°C storage temperature range

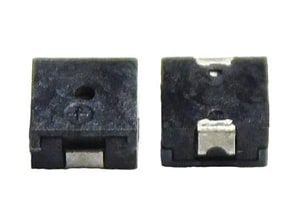

AST
- 4000Hz oscillation frequency
- 2V_DC to 4V_DC operating voltage range
- 3V_p-p rated voltage
- 110mA max current consumption at 3V_p-p
- 70dB/min sound pressure level at 10cm
- 12Ω coil resistance
- -30°C to +70°C operating temperature range
- -30°C to +80°C storage temperature range

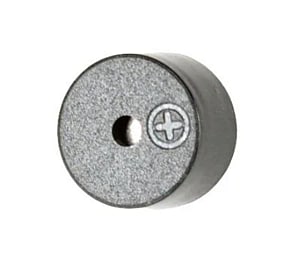

PB
- 4000Hz oscillation frequency
- 2V_p-p to 4V_p-p operating voltage range
- 3V_p-p rated voltage
- 100mA max current consumption
- 85dB min sound pressure level at 10cm
- 12Ω coil resistance
- Constant tone/pulse rate
- -20°C to +70°C operating temperature range
- -30°C to +80°C storage temperature range

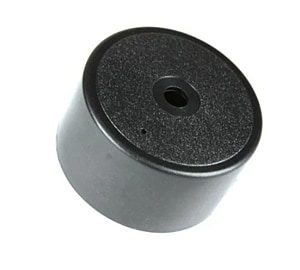

PK
- 3500Hz oscillation frequency
- 18V_DC to 28V_DC operating voltage
- 24V_DC rated voltage
- 20mA max current consumption
- 100dB min sound pressure level at 10cm
- Constant tone/pulse rate
- -20°C to +70°C operating temperature range
- -30°C to +80°C storage temperature range
PT
- 5000Hz resonant frequency
- 5V_p-p to 20V_p-p operating voltage
- 5V_p-p rated voltage
- 3mA max current consumption
- 80dB min sound pressure level at 10cm
- 10,000pF capacitance at 120Hz
- -20°C to +100°C operating temperature range
- -30°C to +110°C storage temperature range

Product Overview

Chart - Mallory Sonalert Transducers & Indicators
