MACOM SP2T Switch

MACOM SP2T Switch is a high-power SP2T switch with integrated bias networks. The MACOM switch is a broadband, reflective switch developed for 20-55GHz applications that require up to 30dBm (1W) power handling. The switch maintains low insertion loss, high isolation, and fast switching speed. These switches are suitable for multiple applications.

Features

Low loss 1dB, 22 to 45GHz
30dBm CW power handling @ +85°C, 40GHz
Switching speed <30ns

Integrated DC blocks and bias networks
Die with GSG RF pads and DC bias pads
RoHS compliant

Applications

Test equipment
Switching arrays of radar systems

Point-to-point communications
Multi-assembly components

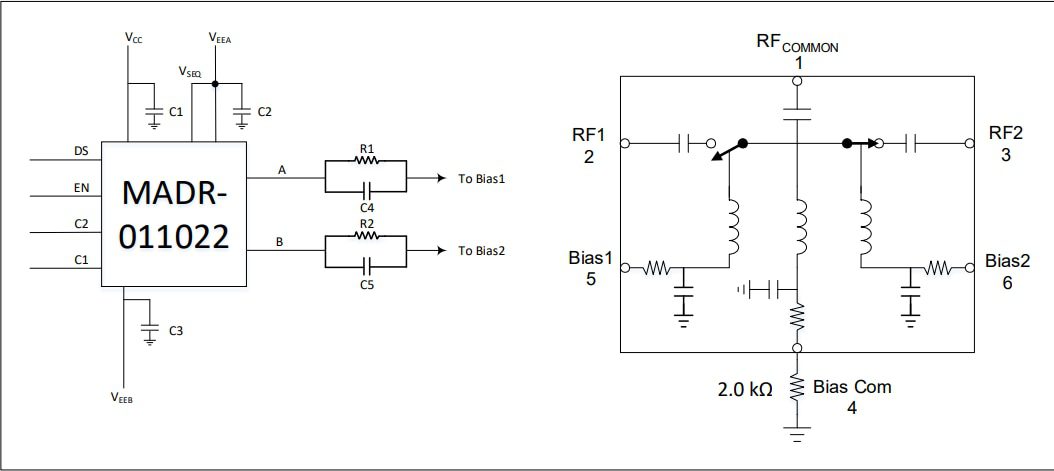

Application Schematic

Schematic - MACOM SP2T Switch
