MACOM MAMX-011043 15-45GHz Image Reject Mixer

MACOM MAMX-011043 15-45GHz Image Reject Mixer has a local oscillator operating range from 12dBm to 18dBm. The MACOM MAMX-011043 provides low conversion loss, good linearity, and excellent image rejection across the 15-45GHz range. Additionally, it can handle up to a 10GHz IF. Its image-reject circuit design ensures excellent port isolation, and its internal 50Ω matching makes it easy to use in various applications.

Features

Ultra-wideband 15-45GHz RF/LO range
12-18dBm LO power operating range
9dB typical low conversion loss
18dBm IIP3 typical high linearity
20dBc typical high image rejection

DC to 10GHz wide IF bandwidth
High isolation
4x4mm QFN package size
RoHS compliant

Applications

Test and measurement
Microwave radio
Radar

MACOM MAMX-011043 15-45GHz Image Reject Mixer

Features

Applications

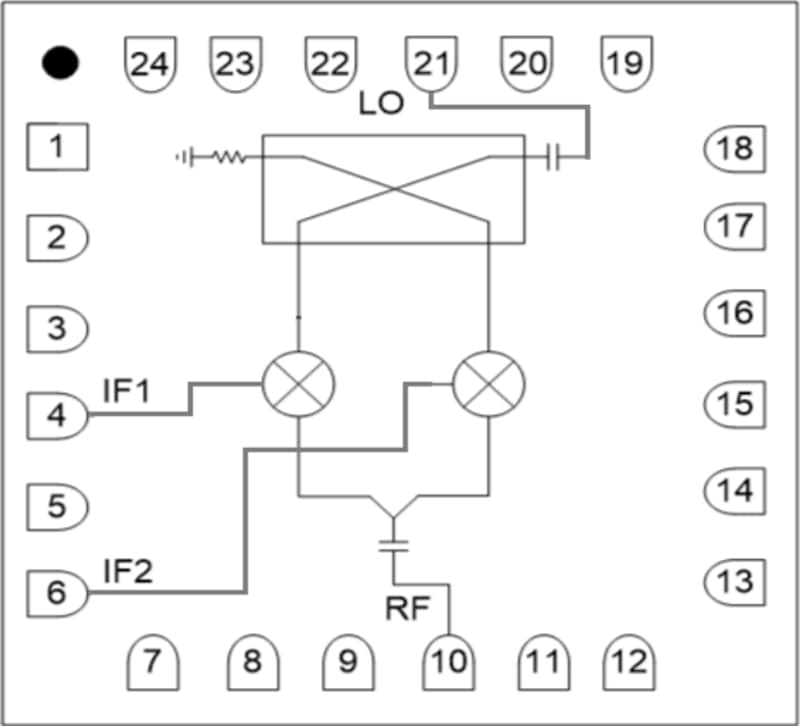

Functional Schematic
