MACOM Distributed Amplifier

MACOM Distributed Amplifier is a wideband amplifier that operates within the 30kHz to 50GHz frequency range. This wideband amplifier delivers 20.5dBm output power, 14.5dB gain, and 4dB noise figure. The distributed amplifier comes with 50Ω internal matching with a typical return loss better than 10dB. This wideband amplifier operates from -40°C to 85°C temperature range and is RoHS compliant. The distributed amplifier fits a broad range of instrumentation and communication systems applications.

Features

Integrated power detector with a detector reference voltage generator
50Ω input and output match

Lead-free 5mm 12-lead AQFN package
RoHS compliant

Specifications

30kHz to 50GHz wide frequency range
14.5dB gain
3V_DC to 8V_DC operating voltage range
200mA bias current

20.5dBm P1dB at 21GHz
29dBm OIP3
-40°C to 85°C operating temperature range

Applications

Instrumentation and communication systems

MACOM Distributed Amplifier

Features

Specifications

Applications

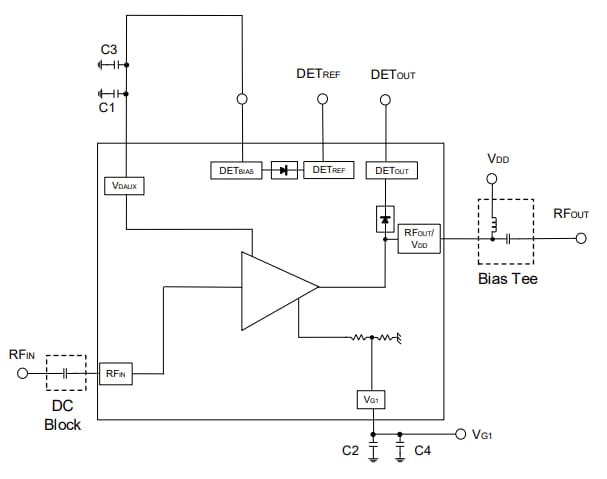

Application Schematic
