M5Stack UnitV2 M12 with Cameras

M5Stack UnitV2 M12 with Cameras is a high-efficiency Ai recognition module integrated with rich hardware and software resources and development tools. The UnitV2 M12 offers a Sigmstar SSD202D (integrated dual-core Cortex-A7 1.2GHz processor) control core, 128MB-DDR3 memory, 512MB NAND Flash, and 1080P camera. The camera is equipped with 1x regular focal length (FOV: 85°) + 1x wide-angle fisheye lens (FOV: 150°), two M12 general specifications lenses, and a support manual focus adjustment.

Features

Sigmstar SSD202D
Dual-core Cortex-A7 1.2GHz processor
128MB DDR3
512MB NAND Flash
GC2145 1080P Colored Sensor
Equipped with dual lenses: regular focal length (FOV: 85°) + wide-angle fisheye lens (FOV: 150°)
Built-in microphone
Wi-Fi 2.4GHz

Development method:
- Equipped with 12 ways Ai image functions: QR code, face detection, line tracking, movement, shape matching, image streaming, classification, color tracking, face recognition, target tracking, shape detection, custom object recognition
Support web online preview, UIFlow (used as serial port json format)
Linux system (OpenCV, SSH, JupyterNotebook)

Applications

Ai recognition function development
Industrial visual recognition classification
Machine vision learning

Kit Contents

1 x M5Stack UnitV2 M12
1 x 16g TF Card
1 x USB-C cable (50cm)
1 x bracket

1 x back clip
1x regular focal length lens (FOV: 85°)
1x wide-angle fisheye lens (FOV: 150°)

M5Stack UnitV2 M12 with Cameras

Features

Applications

Kit Contents

Videos

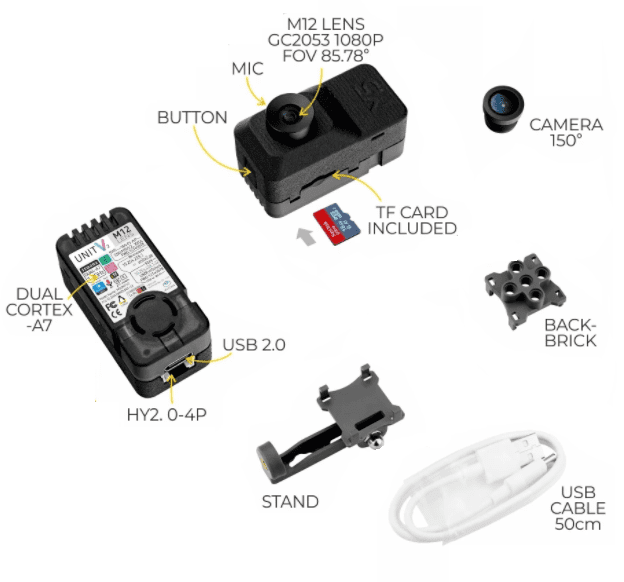

Layout

Overview

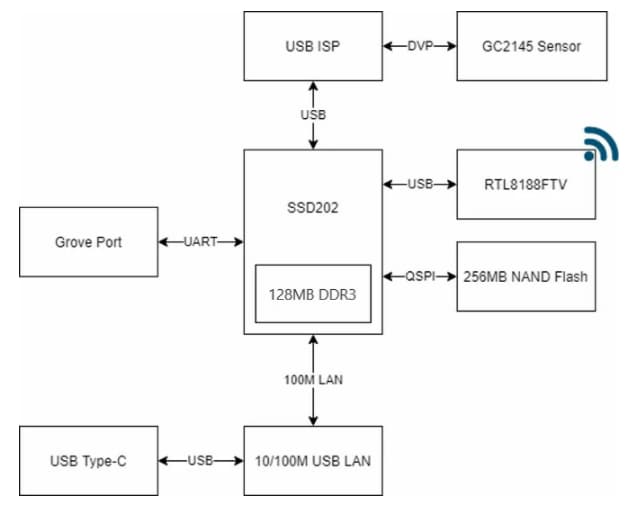

Schematic
