M5Stack Unit NB-IoT Wireless Communication Module

M5Stack Unit NB-IoT is a wireless communication module that is applicable to the global range Cat-NB frequency band. This module features a built-in SIM7020G communication module and an integrated SMA external antenna interface that helps improve communication quality and signal stability. Other features include nano SIM card type, UART serial communication, and AT command control. The unit NB-IoT module is ideal for smart meters, remote monitoring, and shared bicycles.

Features

  • Global version/multi-band support
  • Strong signal access capability
  • AT command control
  • Nano SIM card type
  • SMA external antenna
  • UART 115200bps serial communication
  • Cat-NB frequency band:
    • B1/B2/B3/B4/B5/B8/ B12/B13/B17/B18/B19/ B20/B25/B26/B28/ B66/B70/B71/B85
  • Data transmission (kbps):
    • 126(DL)/150(UL)
  • Network protocol:
    • TCP/UDP/HTTP/HTTPS/ TLS/DTLS/DNS/NTP/ PING/LWM2M/COAP/ MQTT/MQTTS

Kit Contents

  • 1x unit NB-IoT
  • 1x SMA antenna
  • 1x HEX KEY

Applications

  • Smart meter
  • Remote monitoring
  • Shared bicycles

Overview

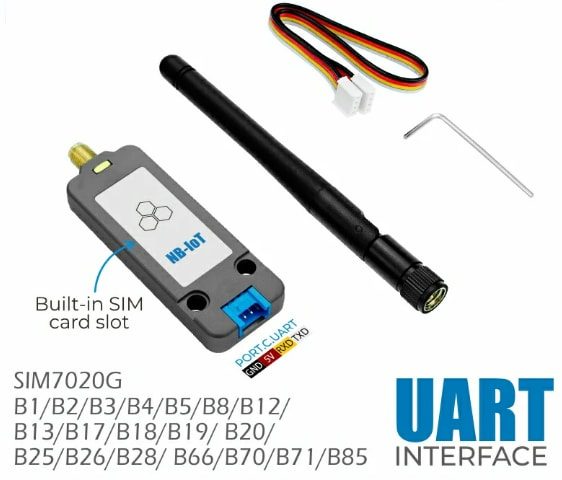

M5Stack Unit NB-IoT Wireless Communication Module

M5Stack Unit NB-IoT Wireless Communication Module
