M5Stack LAN Base with W5500 V12

M5Stack LAN Base with W5500 V12 is an Ethernet controller base with a built-in W5500 full hardware TCP/IP embedded Ethernet controller. This Ethernet controller base can meet the wired network access requirements in the actual production environment. The LAN Base with W5500 V12 is designed for industrial application scenarios such as to provide metal slide rails for easy installation and fixation, equipped with HT3.96 terminals for electrical connection, and supports 9V to 24V input power voltage. This Ethernet controller base comes in standard configuration of TTL-RS485 + TTL-RS232 two adapter boards that adapt to different communication interfaces.

Features

Meets the wired network access requirements in the actual production environment
Designed for industrial application scenarios:
- Provide metal slide rails for easy installation and fixation
- Equipped with HT3.96 terminals for electrical connection
- Support 9V to 24V input power voltage

Standard configuration TTL-RS485 + TTL-RS232 two adapter boards, adapt to different communication interfaces.

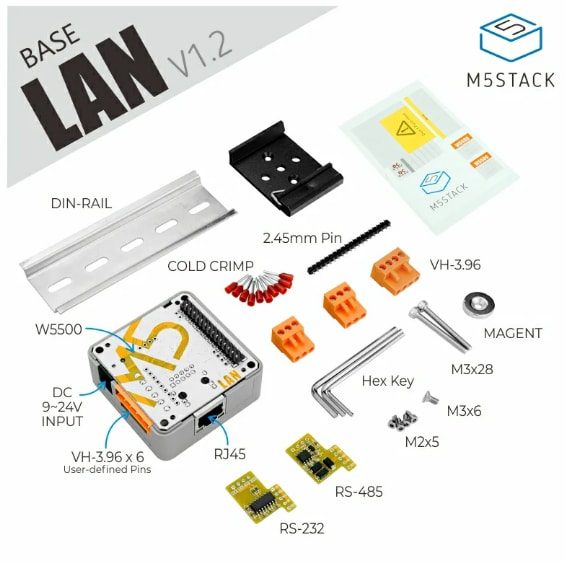

Kit Contents

1x LAN Base
1x TTL-RS485 adapter board
1x TTL-RS232 adapter board
1x header 20pin
1x metal rail and disk
3x HT3.96 terminal:
- 2x 3pin
- 1x 4pin

10x cold crimp terminals
3x Allen key
1x 1.5mm
1x 2mm
1x 2.5mm
2x socket head screw M3x28
4x hex socket tapping screws KA2x4
1x countersunk screw M3x8

Specifications

W5500 Ethernet controller
RJ45 adaptive 10/100M network port

54mm x 54mm x 28mm product size
105mm x 65mm x 40mm packaging size
