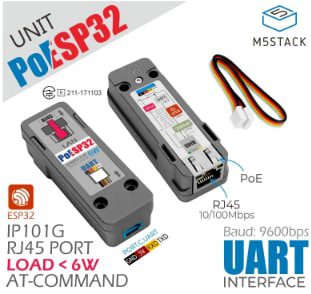

M5Stack ESP32 Ethernet Unit with PoE

M5Stack ESP32 Ethernet Unit with Power over Ethernet (PoE) adopts ESP32 as built-in MAC and IP101G as physical layer transceiver. This module can connect to the server with AT commands through a serial port, achieving data transmission and remote control functions. The ESP32 Ethernet unit with PoE features IEEE 802.3/802.3u standard, RJ45 network port 10Mbps/100Mbps, HY2.0-4P interface 5V_DC power supply, and PoE power supply. This module includes default firmware with ESP-AT and supports TCP, MQTT, and HTTP protocols. The PoESP32 unit with PoE can be used in the Ethernet controller and TCP client data passthrough.

Features

Embedded ESP32 main controller
PHY solution:
- Transceiver model IP101G
- IEEE 802.3/802.3u standard
Ethernet interface:
- PoE IEEE 802.3 AF/supports 6W maximum load power
- RJ45 network port 10Mbps/100Mbps

Communication/download interface:
- ESP-AT default firmware/supports secondary development to implement TCP client/HTTP/CoAP and other protocols
- Programmable/support secondary development and reserve program download interface
Development method:
- 9600bps default AT command and UART
- Arduino and ESP-IDF development platform

Specifications

ESP32-WROOM-32U:
- 240MHz dual-core
- 600 DMIPS
- 520KB SRAM (without integrated 3D antenna, does not support Wi-Fi and BLE wireless function)
3.3V communication logic level

4MB flash
RMII MAC-PHY interface type
72mm x 26mm x 19.2mm product dimensions

Applications

Ethernet controller
TCP client data passthrough

Kit Contents

1x UNIT PoESP32
1x HY2.0-4P cable (20cm)
1x instruction manual
