M5Stack DualKmeter Temperature Measurement Module 13.2

M5Stack DualKmeter Temperature Measurement Module 13.2 is a dual-channel K-type module based on the MAX31855KASA, stm32f030f4p6, and galvanic isolation. This module has a built-in two-way K-type thermocouple sensor interface, which uses the signal relay to measure the temperature value of the two channels. The DualKmeter module 13.2 offers built-in voltage and signal isolation chips such as CA-IS3020S and B0505LS-1WR2 for the safety and security of the system. This module also provides dial codes on and off, which can easily switch different I²C addresses to meet different application needs.

The DualKmeter module 13.2 features Arduino and UIFlow programming platforms and a 32-bit microcontroller with a Cortex-M0 core. This module operates at 0°C to 40°C temperature range and ±2°C measurement accuracy. The DualKmeter module 13.2 is ideally used in industrial automation and instrument detection.

Features

STM32F030F4P6, a 32-bit microcontroller with Cortex-M0 core
MAX31855KASA+T: (14Bit ADC, 0.25°C resolution, and ±2% accuracy)
Supported probe types: K-type supports access probe measuring range from -200°C to 1350°C
Has galvanic isolation

Dual K-type thermocouples
Dial the code to switch the I²C address (default 0x11）
Arduino, UIFlow programming platform

Kit Contents

1 x DualKmeter module 13.2
2 x K-type thermocouples

Applications

Industrial automation
Instrument detection

M5Stack DualKmeter Temperature Measurement Module 13.2

Features

Kit Contents

Applications

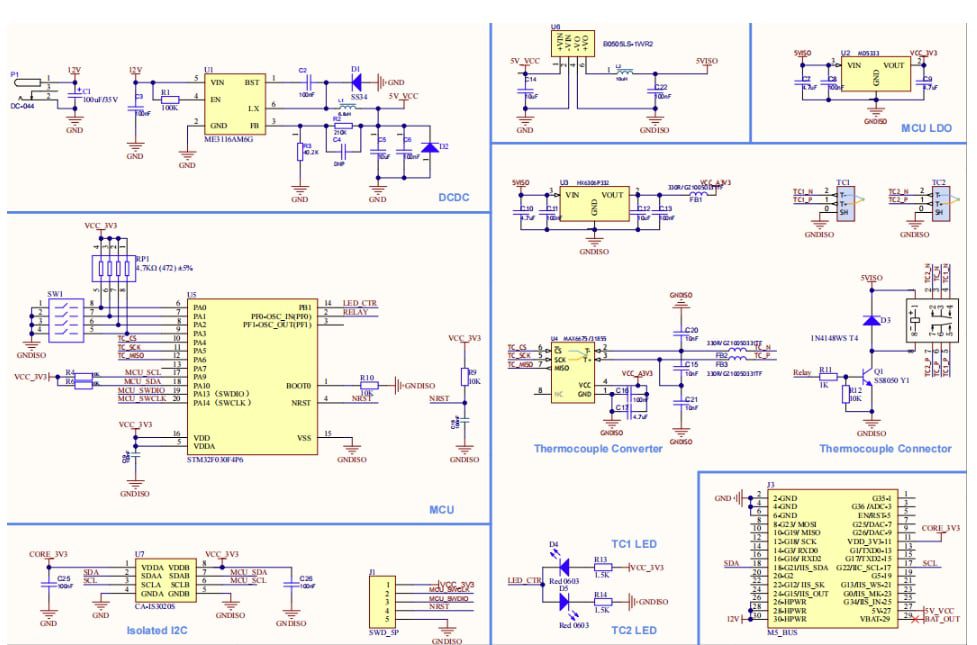

Schematic Diagram

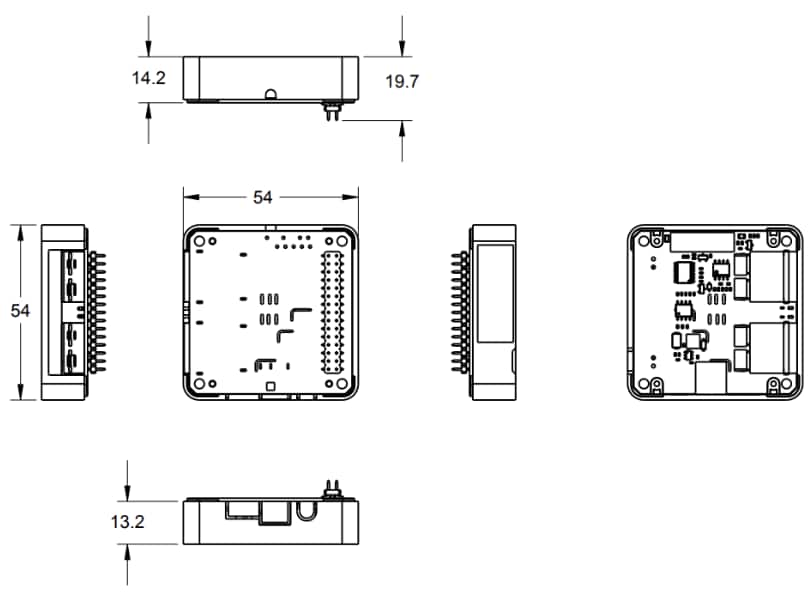

Dimension Diagram
