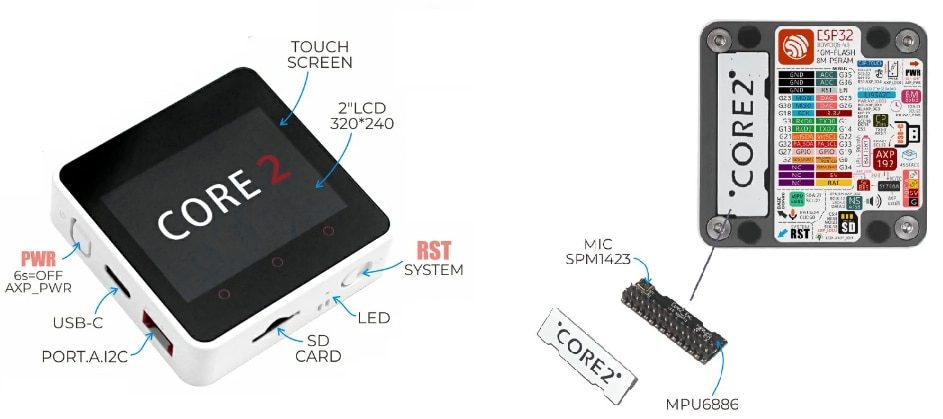

M5Stack Core2 ESP32 IoT Development Kit a device that supports ESP32 model D0WDQ6-V3 and has dual-core Xtensa® 32-bit 240MHz LX6 processors that can be controlled separately. This ESP32 chip comes integrated with WiFi and Bluetooth® technologies and it has an onboard 16MB Flash and 8MB PSRAM memory. The Core2 device supports a USB TYPE-C interface for charging and downloading programs and serial communication. This device features a built-in RTC module, speaker, power indicator, vibration motor, reset button, and power button. The Core2 device power supply is managed by an AXP192 power management chip, that can effectively control the power consumption of the base.
The Core2 device supports I2S digital audio interface power amplifier chip that is used to effectively prevent signal distortion and to ensure higher quality sound output. The device comes with independent power and reset buttons on the left side and bottom of the base. This Core2 device also includes 3 icons on the front of the screen are capacitive buttons that are programmable. The device operates at a 5V supply voltage and 0°C to 40°C temperature range. This Core2 device is available in 54mm x 54mm x 16mm dimensions. Typical applications include DIY creation, stem education products, and smart home equipment.
