M5Stack ATOM TailBat

M5Stack ATOM TailBat is an external battery accessory designed for the M5ATOM. The TailBat module directly supplies power, enabling the M5ATOM to be used in mobile applications. Since the TailBat has been designed simply to add battery power, it will not affect the original Grove Connection mode and USB functionality. The built-in 190mah battery can only be easily charged through the USB Type-C interface.

The M5Stack ATOM TailBat is also compatible with the M5Stick, M5StickC, M5StickV, and M5Camera.

Features

Adapted for ATOM Matrix/ATOM Lite form factor
Based on the Injoinic Technology IP5303 PMIC
Built-in rechargeable 190mAh lithium battery
Ports
- USB Type-C
- Grove

Plug and play
Red LED indicator
M5Stick, M5StickC, M5StickV, and M5Camera compatible
Dimensions: 55mm x 22mm x 14mm
Weight: 10g

Applications

ATOM portable power

M5Stack ATOM TailBat

Features

Applications

Videos

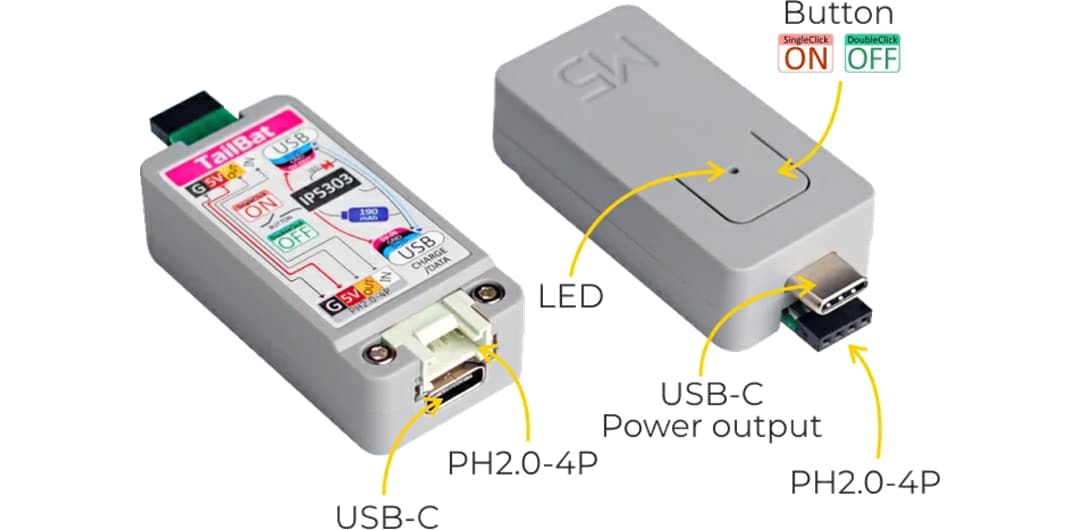

Overview

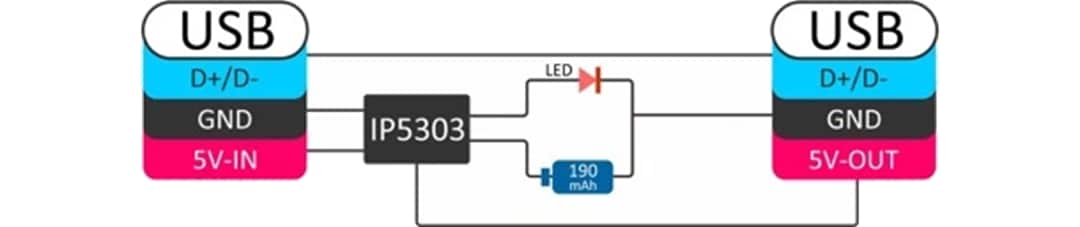

Block Diagram
