Luxonis OAK-T Thermal Camera

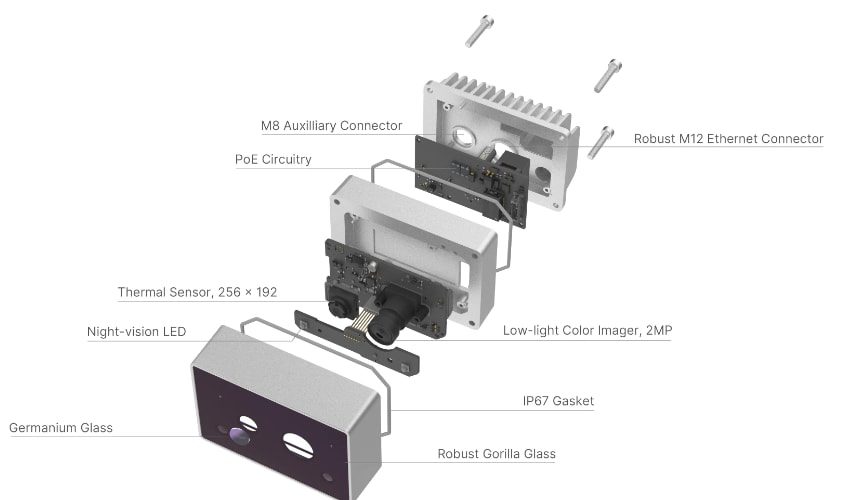

Luxonis OAK-T Thermal Camera with a thermal sensor and color image sensor detects infrared radiation emitted by all objects using an IR-capable lens. This camera features an M12 PoE connector and M8 connector for IO connectivity, BMI270 IMU, 8μm to 14μm spectral range, and 50mK thermal sensitivity @25°C, 25Hz. The OAK-T thermal camera offers ±2°C or ±2% thermal accuracy (whichever is larger). This camera is used to detect leaks that humans and vision-based systems are unable to detect. The OAK-T thermal camera is also to detect pedestrians, vehicles, animals, fires, overheating, and intruders.

Features

M12 PoE connector and M8 connector for IO connectivity
50mK thermal sensitivity @25°C and 25Hz
-15°C to 150°C measurement range
±2°C or ±2% thermal accuracy (whichever is larger)
Uncooled VOx detector sensor type
8μm to 14μm spectral range
-20°C to 50°C operating temperature range
BMI270 IMU

80mm x 52mm x 46mm dimensions
Power consumption:
- ≤1W AI subsystem consumption
- ≤1W consumption by thermal sensor
- 3W to 3.5W base consumption + PoE circuitry + camera streaming

Specifications

Thermal sensor:
- 256×192 resolution
- 25FPS maximum frame rate
- 12μm pixel size
- 30cm to ∞ range/focus
- 111° Direct Field Of View (DFOV)
- 90° Horizontal Field Of View (HDOV)
- 65° Vertical Field Of View (VFOV)

Color sensor:
- 30cm to ∞ range/focus
- 30FPS maximum frame rate
- 2.9μm pixel size
- 2.1MP (1920×1080) resolution
- 95° Direct Field Of View (DFOV)
- 84° Horizontal Field Of View (HDOV)
- 45° Vertical Field Of View (VFOV)

Applications

Agriculture:
- Detect irrigation issues
- Detect pests
- Livestock health monitoring
Industrial:
- Detect overheating
- Detect leaks
- Detect fires

Detect intruders (night vision)
Detect pedestrians, vehicles, and bicycles for analytics and traffic optimization
