Luxonis OAK-D-S2-POE IP67 Rated Robotic Perception Camera

Luxonis OAK-D-S2-POE IP67 Rated Robotic Perception Camera is the series 2 version of the OAK-D-PoE. The difference is that the OAK-D S2 PoE has a smaller enclosure and is lighter. The camera also has an industrial M12 PoE connector instead of an RJ45. The OAK-D-S2-POE has additional features like an M8 connector for IO connectivity, USB2 (D+, D-), camera IOs (FSIN, STROBE), power, and 2 other auxiliary IOs, capable of UART, I²C, or GPIO.

Features

4 TOPS of processing power (1.4 TOPS for AI)
Run any AI model, even custom architectured/built ones – models need to be converted.
Encoding H.264, H.265, MJPEG – 4K/30FPS, 1080P/60FPS
Computer vision warp/dewarp, resize, crop via ImageManip node, edge detection, feature tracking

Can also run custom CV functions
Stereo depth perception at with filtering, post-processing, RGB-depth alignment, and high configurability
Object tracking 2D and 3D tracking with ObjectTracker node

Applications

Industrial automation
Robotics
Surveillance IP camera

Security systems
Remote intelligence

Luxonis OAK-D-S2-POE IP67 Rated Robotic Perception Camera

Features

Applications

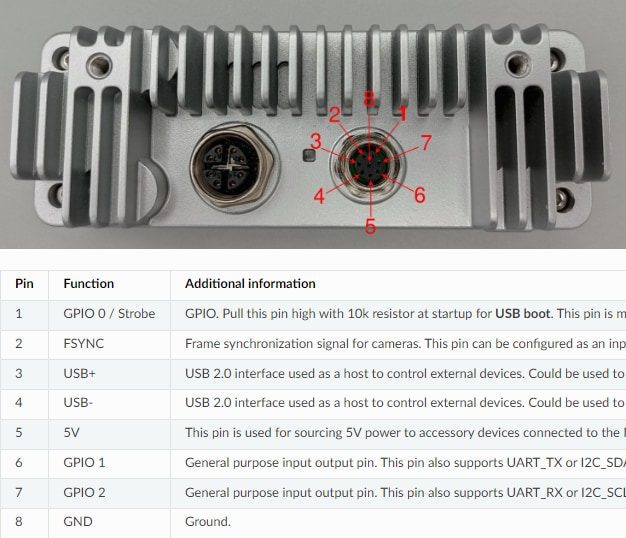

Auxiliary M8 connector
