Lumissil IS31LT3177/78 LED Drivers

Lumissil IS31LT3177/78 LED Drivers are adjustable linear current devices that provide excellent temperature stability. These LED drivers operate at 2.9V to 40V input voltage range with a minimal voltage headroom of 1V (typical) at 150mA. The IS31LT3177/78 LED drivers offer low dropout voltage that drives LED strings close to the supply voltage without switch capacitors or inductors. These drivers simplify the designs by providing a stable current without the additional requirement of inductors, FETs, and diodes. The IS31LT3177/78 LED drivers are available in SOT23-6 and SOP-8-EP packages and are RoHS compliant.

Features

Output current limit
Thermal shutdown
Low-side current sink:
- SOT23-6: Adjustable from 10mA to 150mA
- SOP-8-EP: 200mA
Up to 1kHz PWM input (IS31LT3178 only)
1.0V at 150mA of low dropout voltage

±5% of current accuracy
Wide input voltage range:
- IS31LT3177: 5V to 40V
- IS31LT3178: 2.9V to 40V
0.6%/K current roll-off at high temp over 145°C for thermal protection
RoHS compliant (Pb-free) package

Applications

General lighting
Architectural LED lighting
Channel letters for advertising

LED strips for decorative lighting
Retail lighting in the fridge, freezer case, and vending machines
Emergency lightings like steps lighting and exit way sign

Block Diagrams

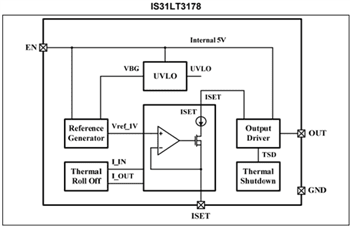

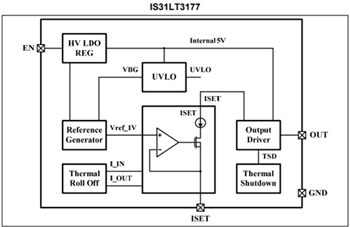

Block Diagram - Lumissil IS31LT3177/78 LED Drivers

Lumissil IS31LT3177/78 LED Drivers

Features

Applications

Block Diagrams

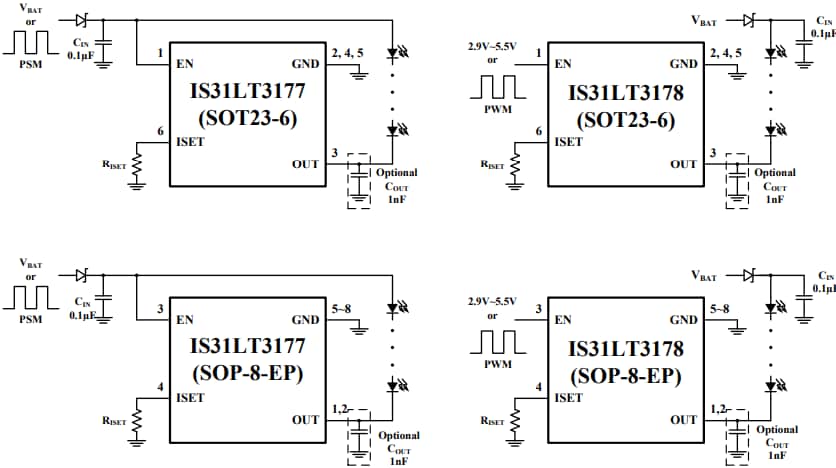

Typical Application Circuit Diagram
