Lumissil IS31FL3729 Matrix LED Drivers

Lumissil IS31FL3729 Matrix LED Drivers are general-purpose 16×8, or 15×9 LED Matrix programmable via a 1MHz I²C compatible interface. The LEDs can be individually dimmed, and each CSx has 8-bit DC scaling (color calibration) data. This allows 256 steps of linear PWM dimming for each dot and 256 steps of DC current adjustable level for each CSx. Additionally, each LED open and short state can be detected. The IS31FL3729 stores the open or short information in Open-Short Registers.

Features

2.7V to 5.5V supply voltage range
16 current sinks
Support 16xn (n=1~8), 15×9 LED matrix configurations
Individual 256 PWM control steps
256 DC current steps for each CSx
64 global current steps
SDB rising edge reset I²C module

32kHz PWM frequency
1MHz I²C-compatible interface
Individual open and short error detect function
PWM 180° phase shift
Spread spectrum
De-ghost
QFN-32 (4mm x 4mm) and eTQFP-32 packages

Applications

White goods LED display panels
IoT devices

Lumissil IS31FL3729 Matrix LED Drivers

Features

Applications

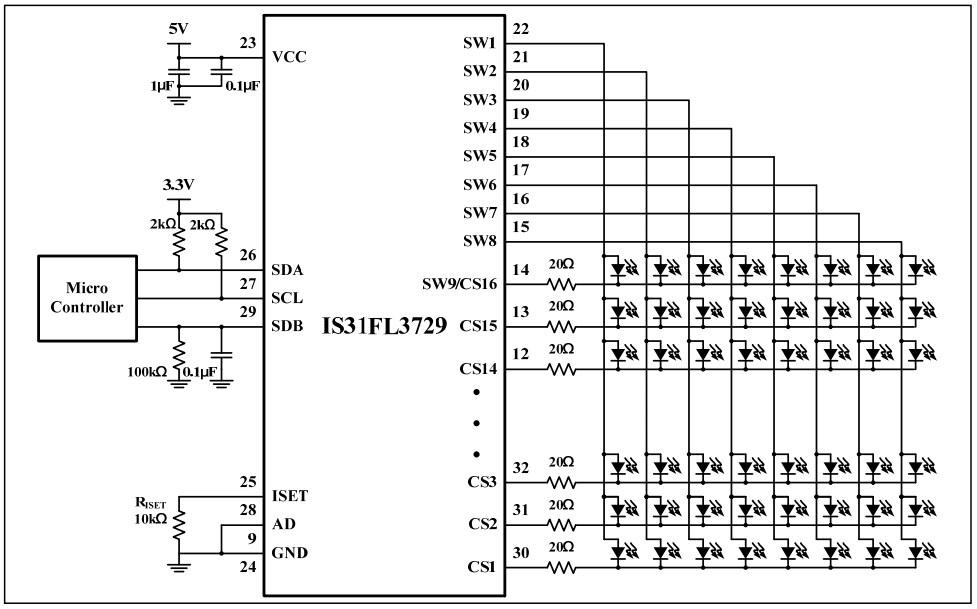

Typical Application Circuit
