Lumissil IS31FL3238 18-Channel LED Driver

Lumissil IS31FL3238 18-Channel LED Driver features Pulse Width Modulation (PWM) by 16-bits for smooth LED brightness control. Each channel provides an 8-bit output current control register that allows fine-tuning of the current for RGB color mixing. This LED driver offers 78mA of the maximum output current for each channel and is controlled by one 8-bit global control register. The IS31FL3238 LED driver operates at 2.7V to 5.5V V_CC supply range and -40°C to 125°C temperature range.

Features

Temperature detect function
Open/short detect function
62kHz PWM frequency (8-bit PWM)
2.7V to 5.5V V_CC supply range
1MHz I²C interface
4 selectable I²C addresses

Accurate color rendition
- Selectable 16-bit PWM 256/1024/4096/65536
- 8-bit dot correction
- 8-bit global current adjust
-40°C to 125°C temperature range
QFN-28 (5mm × 5mm) package

Applications

AI-speakers
Smart home devices
Hand-held devices for LED display
LED in home appliances

Lumissil IS31FL3238 18-Channel LED Driver

Features

Applications

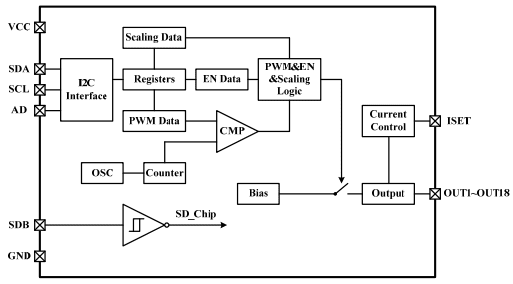

Block Diagram

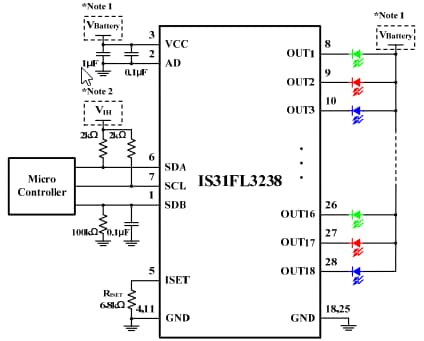

Typical Application Circuit
