Luminus Devices SST-12-WxH High Power White LEDs

Luminus Devices SST-12-WxH High Power White LEDs offer 1.5A maximum drive current and are available in 2700K, 3000K, 3500K, and 4000K color temperatures. These high-power white LEDs feature 4.9°C/W low thermal resistance and a >95 Color Rendering Index (CRI). The SST-12-WxH white LEDs offer 2.9V maximum forward voltage (@I_f =350mA, T_j =85°C), 5V reverse current (I_r=10mA), and 4.9W power dissipation. These white LEDs consist of American National Standards Institute (ANSI) compatible chromaticity bins. Typical applications include directional architectural lighting like wall washers, track lights, spotlights, landscape and flood lights, stage and studio lighting, and miniature high-output recessed lights.

Features

1.5A maximum drive current
Typical 113lm/W @350mA, 85°C (3000K) luminous efficacy
2700K, 3000K, 3500K, and 4000K color temperatures
>95 Color Rendering Index (CRI)
4.9°C/W low thermal resistance
2.9V maximum forward voltage (@I_f =350mA, T_j =85°C)
4.9W power dissipation

5V reverse voltage (I_r=10mA)
120degree viewing angle
-40°C to 100°C operating temperature range
ANSI-compatible chromaticity bins
Electrically isolated thermal path
8kV Human Body Model (HBM) ESD rating per ANSI/ESDA/JEDEC JS-001
RoHS and REACH compliant

Applications

Directional architectural lighting:
- Wall washers
- Track lights
- Spotlights
Miniature high-output recessed lights

Landscape spots and flood lights
Stage and studio lighting

Luminus Devices SST-12-WxH High Power White LEDs

Features

Applications

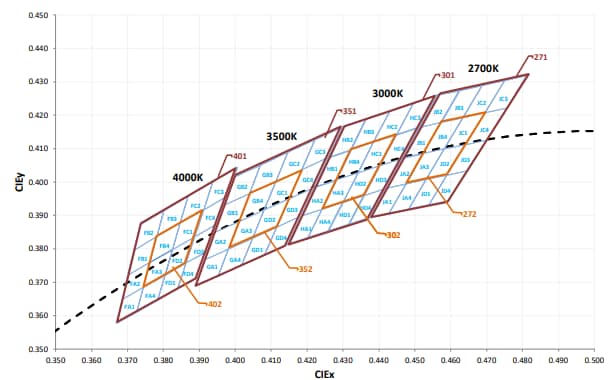

Chromaticity Binning Diagram
