Luminus Devices SFT-70X-WxS High Power White LEDs

Luminus Devices SFT-70X-WxS High Power White LEDs offer a flat window package that emits less light than a dome-shaped cover. The SFT-70X-WxS allows smaller optics and higher optical coupling efficiency. The SFT-70X-WxS LEDs produce a high lumen density similar to a monolithic emitter. In addition, the Luminus Devices SFT-70X-WxS High Power White LEDs supply a powerful light source for beam pattern critical lighting applications, delivering extremely high intensity, long beam distance, and tight beam angles.

Features

6V or 12V configurable, excellent color and brightness uniformity from a multi-junction single monolithic emitter
Cool white LEDs with maximum output over 3500lm @ 7A (6V), 85°C
High lumen density up to 554lm/mm2 (6500K)
Maximum drive current of 7A (6V), 3.5A (12V)
Luminous efficacy of typ. 156lm/W @ 700mA, 85°C (6500K)

Color temperature of 5000K, 5700K, 6500K
Color rendering index of min. 65, typ. 70
Low thermal resistance of 0.6°C/W
ANSI-compatible chromaticity bins
Electrically isolated thermal path
8kV HBM ESD rating per ANSI/ESDA/JEDEC JS-001
RoHS and REACH compliant

Applications

Portable lights
Automotive auxiliary lights
Battery or solar-powered lights

LED Work lights
Outdoor and roadway lighting
High bay industrial lighting

Luminus Devices SFT-70X-WxS High Power White LEDs

Features

Applications

Videos

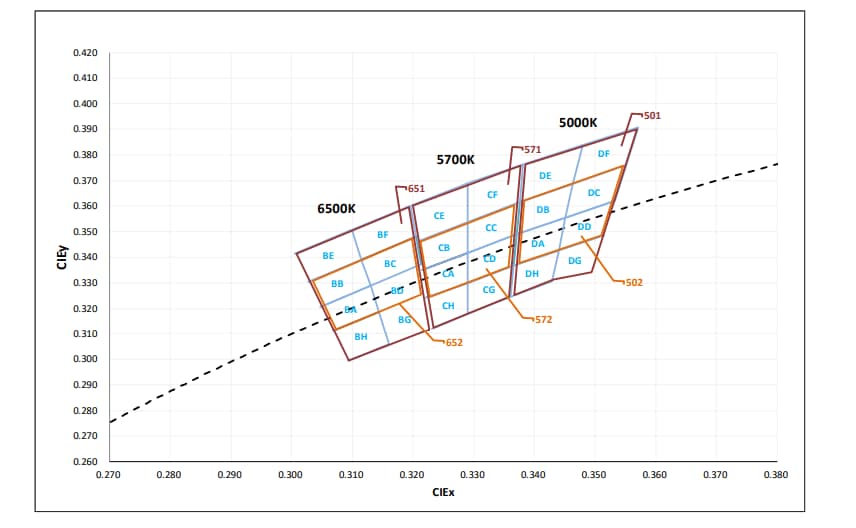

Chromaticity Binning Diagram
