Luminus Devices SFT-40-WxS High Power White LEDs

Luminus Devices SFT-40-WxS High Power White LEDs offer a flat window package that emits less light than a dome-shaped cover. The SFT-40-WxS allows smaller optics and higher optical coupling efficiency. The SFT-40-WxS LEDs produce a high lumen density similar to a monolithic emitter. In addition, the Luminus Devices SFT-40-WxS High Power White LEDs supply a powerful light source for beam pattern critical lighting applications, delivering extremely high intensity, long beam distance, and tight beam angles.

Features

Cool white LEDs with a maximum output in excess of 2200lm @8A, 85°C
High lumen density up to 588lm/mm2 (6500K)
8A Maximum drive current
Luminous Efficacy of typ. 171lm/W @ 700mA, 85°C (6500K)
5000K, 5700K, and 6500K Color temperature

Color Rendering Index of min. 65, typ. 70
Low thermal resistance of 0.7°C/W
ANSI-compatible chromaticity bins
Electrically isolated thermal path
8kV HBM ESD rating per ANSI/ESDA/JEDEC JS-001
RoHS and REACH compliant

Applications

Portable lights
Bicycle lights
Automotive auxiliary lights
LED Work lights

Outdoor and roadway lighting
High bay industrial lighting
Entertainment lighting
Directional light fixtures

Luminus Devices SFT-40-WxS High Power White LEDs

Features

Applications

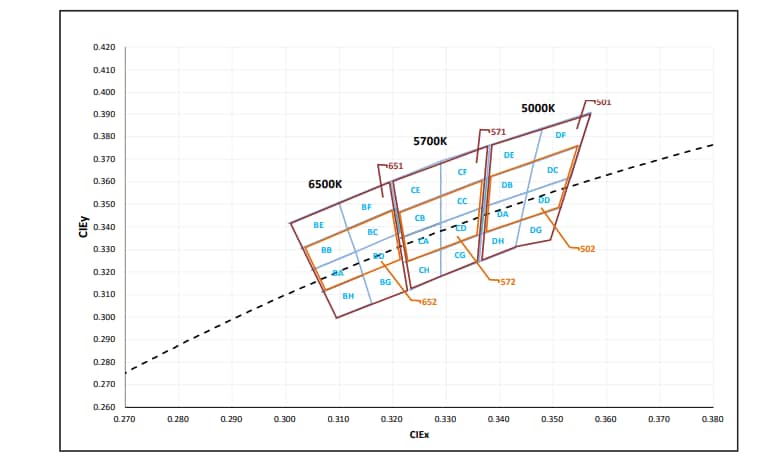

Chromaticity Binning Diagram
