Luminus Devices MP-3030-110F Flip Chip Mid Power LEDs

Luminus Devices MP-3030-110F Flip Chip Mid Power LEDs offer a lighting class solution for high-performance general lighting applications. The MP-3030-110F Flip Chip LEDs enable the development of lighting solutions with maximum efficacy, brightness, and overall quality.

The Luminus MP-3030-110F Flip Chip Mid Power LEDs provide low thermal resistance, high efficacy, and 80, 90, or 95 CRI options. The MP-3030-110F is compatible with automatic placement equipment and the infrared reflow solder process. The fully qualified LEDs are well suited for use in a wide range of high-performance and high efficacy lighting applications.

Features

  • High efficacy
  • CRI Options of 80, 90, 95 minimum
  • Low thermal resistance
  • Compatible with automatic placement equipment
  • Compatible with infrared reflow solder process
  • Sulfur resistant
  • RoHS and REACH compliant

Applications

  • Replacement lamps
  • Panel lighting
  • Down lights
  • Horticulture

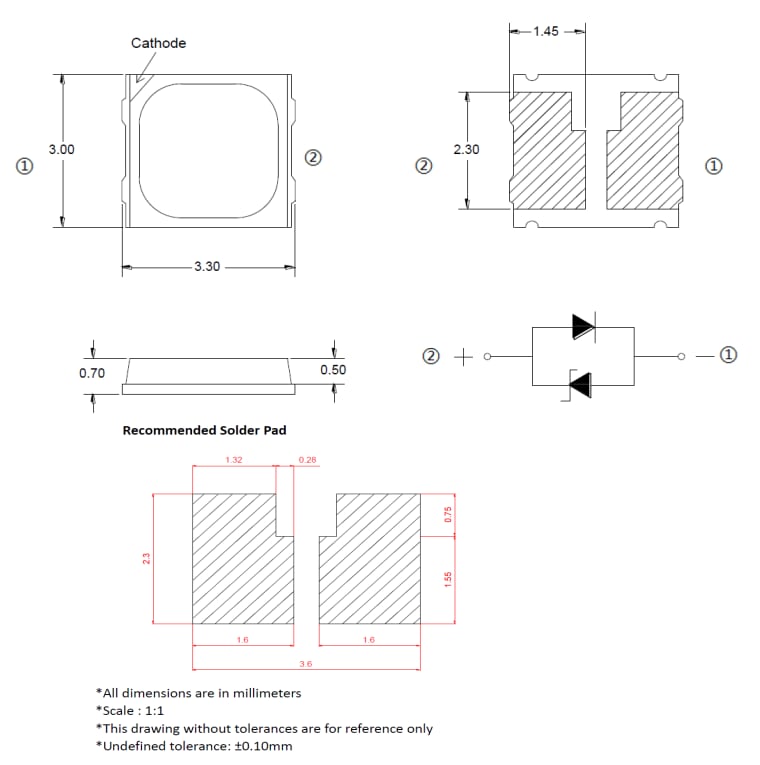

Package Dimensions (mm)

Mechanical Drawing - Luminus Devices MP-3030-110F Flip Chip Mid Power LEDs

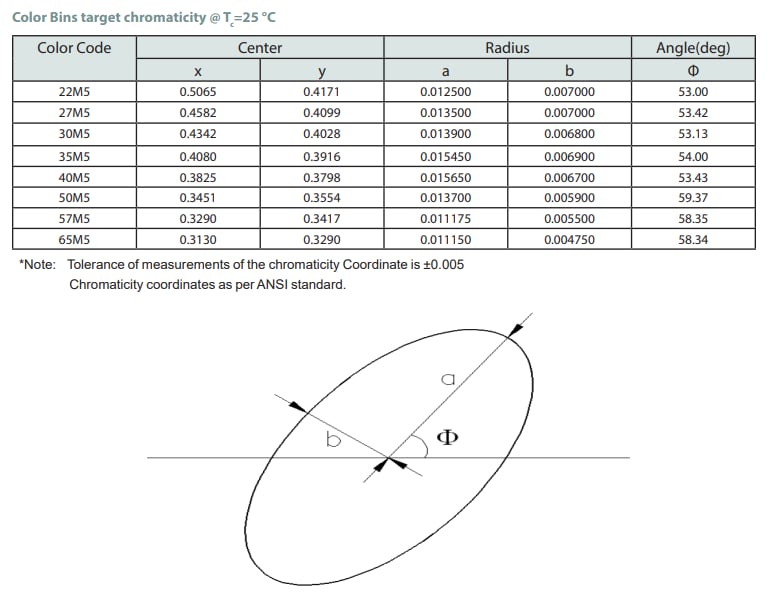

Eclipse Definition

Luminus Devices MP-3030-110F Flip Chip Mid Power LEDs

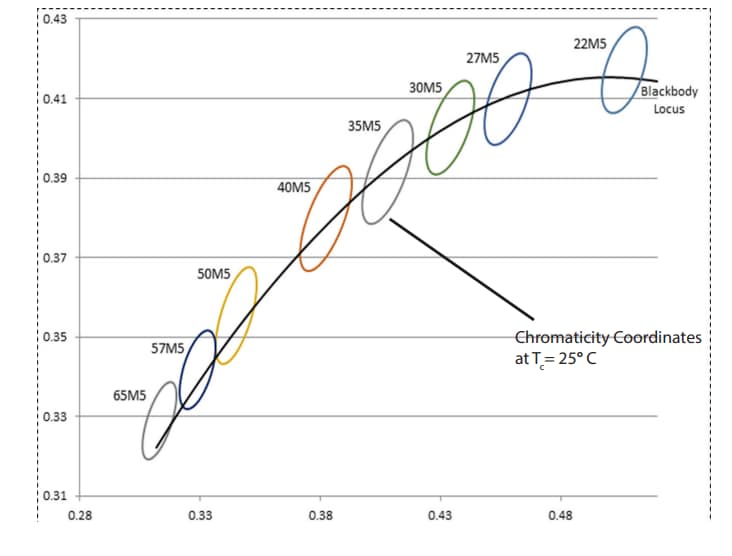

Chromaticity Coordinate Group

Chart - Luminus Devices MP-3030-110F Flip Chip Mid Power LEDs
