Luminus Devices CXM-6/9/14 Gen 4 COB White LEDs

Luminus Devices CXM-6/9/14 Generation 4 COB White LEDs are high flux density LEDs that provide enhanced efficacy with reduced power consumption. These LEDs feature a Correlated Color Temperature (CCT) range of 2400K, 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, and 6500K. The CXM-6/9/14 white LEDs offer excellent optical emission uniformity and color over angle consistency, exceptional long-term color stability, and superior thermal conductivity for uniform heat spreading. These Generation 4 COB array LEDs are RoHS/REACH compliant, and UL recognized. Typical applications include downlights, shop lighting, architectural and specialty, hospitality, street lighting, tunnel lighting, and spotlights/track lights.

Features

  • High lumen output and efficacy typical
  • Over 1,570lm, 130LPW @3000K, 90CRI, Tj = 85ºC
  • Over 2,015lm, 167 LPW @5000K, 70CRI, Tj = 85ºC
  • CCT range 2400K, 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, and 6500K
  • AccuWhite high color rendering, 97CRI (typical most CCTs)
  • 3 SDCM color binning standard, 2 SDCM binning available
  • Excellent optical emission uniformity and color over angle consistency
  • Exceptional long term color stability
  • Superior thermal conductivity for uniform heat spreading
  • Environmentally friendly:
    • RoHS and REACH compliant
    • UL recognized, file # E465703

Applications

  • Street lighting
  • Spotlights/track lights
  • Downlights
  • Shop lighting
  • Hospitality lighting
  • Architectural and specialty
  • Tunnel lighting
  • Parking lots and area lighting

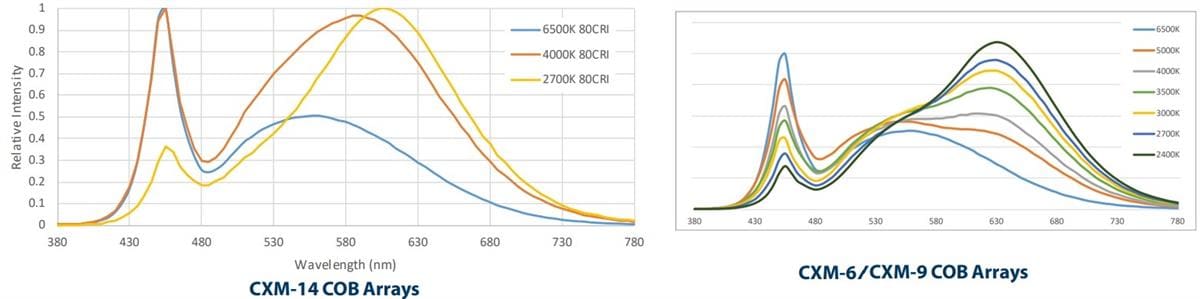

Typical Spectrums

Performance Graph - Luminus Devices CXM-6/9/14 Gen 4 COB White LEDs
