Luminus Devices CBM-25X-UV Ultraviolet Chip On Board LEDs

Luminus Devices CBM-25X-UV Ultraviolet Chip On Board LEDs are based on the latest chip technology that enables ultra-high power density operation up to 4A/mm². These LEDs feature Mosaic array UV LEDs chipset with a 2.4mm² emitting area and 2.1:1 aspect ratio. The CBM-25X-UV LEDs are specified for flux and peak wavelength at a drive current of 1A with a 20ms pulse at 25°C. These ultraviolet LEDs are suitable for 3D printing and additive manufacturing, medical and scientific instrumentation, machine vision, and fiber-coupled illumination.

Features

Mosaic Array UV LEDs chipset with 2.4mm² emitting area and 2.1:1 aspect ratio
The latest chip technology enables ultra-high power density operation up to 4A/mm²
High thermal conductivity isolated copper core board package

The low-profile window for efficient coupling into small-etendue systems
Environmentally friendly:
- REACH, RoHS, and Halogen compliant

Applications

3D printing and additive manufacturing
Machine vision

Fiber-coupled illumination
Medical and scientific instrumentation

Luminus Devices CBM-25X-UV Ultraviolet Chip On Board LEDs

Features

Applications

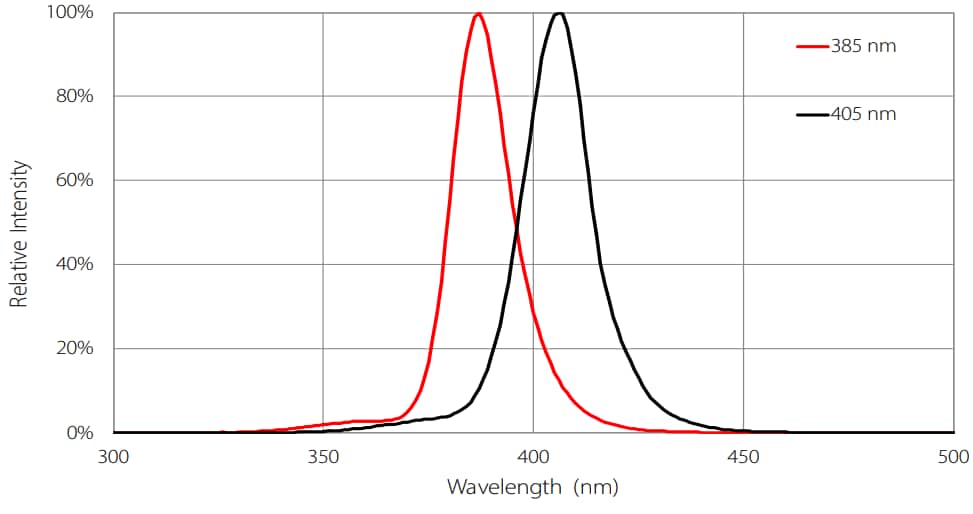

Typical Spectrum

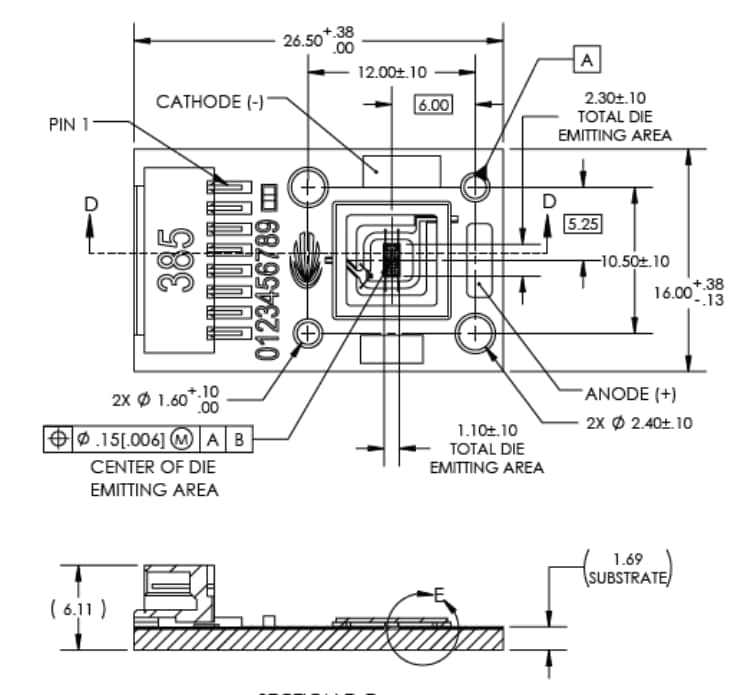

Mechanical Drawing
