Luminus Devices CBM-160X-UV Ultraviolet Chip On Board LEDs

Luminus Devices CBM-160X-UV Ultraviolet LEDs are designed with UVX technology that enables ultra-high power density operation up to 4A/mm². These LEDs feature a 380nm to 410nm UVA wavelength range and a surface-emitting area of 16mm² with a 4:3 aspect ratio. The CBM-X-UV LEDs include a low-profile window for efficient coupling into small-etendue systems. These LEDs achieve over 60W of optical power at maximum rated drive conditions. The CBM-X-UV LEDs are RoHS, REACH, and halogen compliant. Typical applications include maskless Lithography, curing, machine vision, scientific instrumentation, and 3D printing.

Features

Mosaic array UV LED chipset with surface-emitting area of 16mm², 4:3 aspect ratio
UVX technology enables ultra-high power density operation up to 4A/mm²
Low-profile window for efficient coupling into small-etendue systems
380nm to 410nm UVA wavelength range

Over 60W of optical power at maximum rated drive condition
Electrically isolated and high thermal conductivity copper core board package

Applications

Maskless Lithography
Machine vision
Scientific and medical instrumentation
3D printing

Curing:
- Inks
- Coating
- Adhesive

Luminus Devices CBM-160X-UV Ultraviolet Chip On Board LEDs

Features

Applications

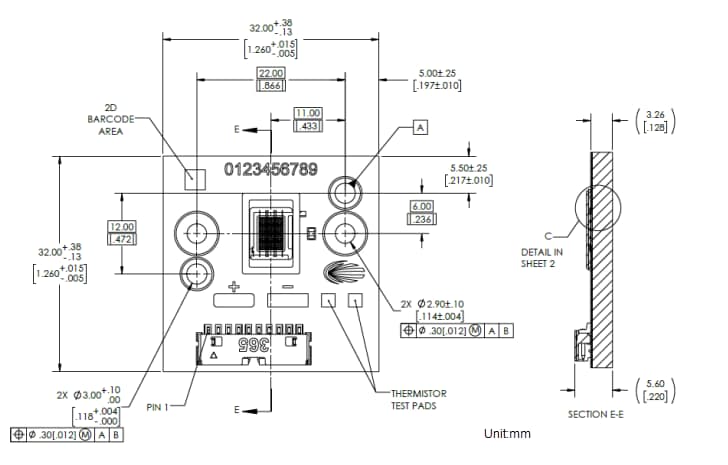

Mechanical Drawing

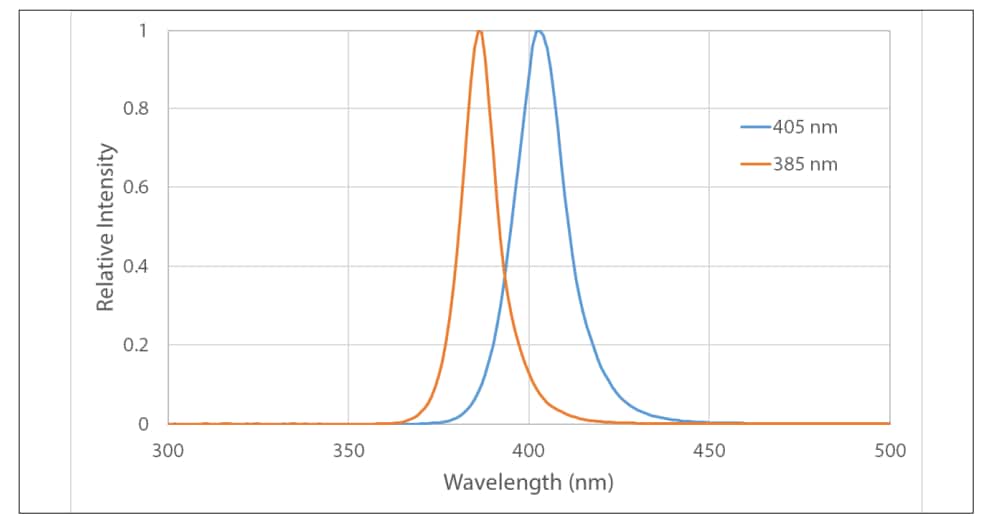

Typical Spectrum Diagram
