Lumileds CS CoB LEDs

Lumileds CS Chip on Board (CoB) LEDs deliver unmatched performance, quality of light, and uncompromising product quality. These LEDs feature high efficacy, superior quality of light, and ease of design footprints. The CS CoB LEDs are supported by a comprehensive optical, mechanical, and electrical ecosystem. These LEDs are applicable for track lights, spotlights, downlights, high bay, and low bay.

Features

Widely used square footprints for easy design-in
High performance with superior color stability
Industry sizes MCPCB for seamless drop-in replacements
Best-in-class luminous flux and efficacy on 90CRI
CCT/CRI option:
- 2700K/3000K/3500K/4000K/5000K/5700K/6500K, and 80/90CRI
Footprint option:
- 13.5mm x 13.5mm / 19mm x 19mm / 28mm x 28mm
6/9/13/15/22 LES option
Luminous flux (typical): 3707lm @ LES 15/3000K/90CRI @720mA, T_j=85°C
Luminous efficacy (typical): 152lm/W @ LES 15/3000K/90CRI @720mA, T_j=85°C
RoHS compliant

1000 hours HTOL T_j=125°C
1000 hours WHTOL 85°C/85% RH, DC
500 cycles power TMCL
30000 cycles of power switching
ESD 8kV
Low thermal resistance enables smaller heatsinks and extends the operating life span
Superior color stability
Exceptional reliability
Supported by a comprehensive optical, mechanical, and electrical ecosystem

Applications

Track lights
Spotlights
Downlights

High bay
Low bay

Lumileds CS CoB LEDs

Features

Applications

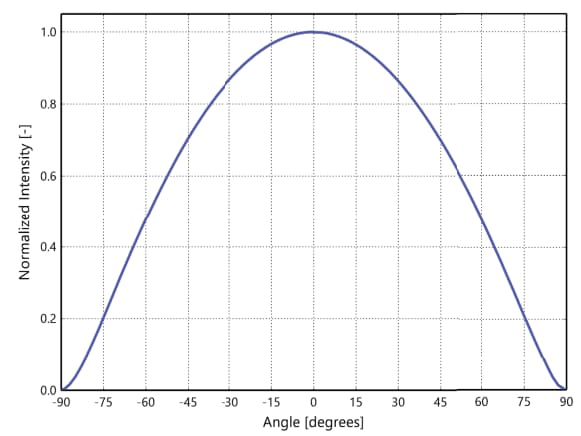

Radiation Pattern for CS CoB @ Tj =85°C
